GS7808YF - 1A Positive Voltage Regulator

Product Overview

Globaltech

Datasheet Details

Part number	GS7808YF
Manufacturer	Globaltech
File Size	249.16 KB
Description	1A Positive Voltage Regulator
Datasheet	GS7808YF Datasheet
Note	This datasheet PDF includes multiple part numbers: GS7808YF, GS7805TF. Please refer to the document for exact specifications by model.

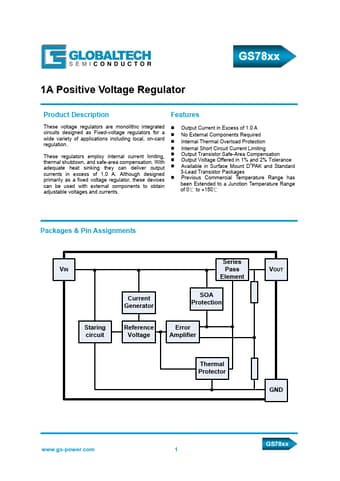

Additional preview pages of the GS7808YF datasheet.

Product details

Description

These voltage regulators are monolithic integrated circuits designed as Fixed-voltage regulators for a wide variety of applications including local, on-card regulation.

Features

Output Current in Excess of 1.0 A No External Components Required Internal Thermal Overload Protection Internal Short Circuit Current Limiting Output Transistor Safe-Area Compensation Output Voltage Offered in 1% and 2% Tolerance Available in Surface Mount D2PAK and Standard 3-Lead Transistor Packages Previous Commercial Temperature Range has been Extended to a Junction Temperature Range of 0℃ to +150℃ Packages & P.
