2SK3484 - MOSFET

2SK3484 Description

SMD Type MOS Field Effect Transistor 2SK3484 TO-252 www.DataSheet4U.com IC MOSFET .

2SK3484 Features

* Super low on-state resistance: RDS(on)1 = 125m RDS(on)2 = 148m MAX. (VGS = 10 V, ID = 8A) +0.2 9.70-0.2 Unit: mm +0.1 2.30-0.1 +0.8 0.50-0.7 +0.1 0.80-0.1 +0.15 0.50-0.15 Low Ciss: Ciss = 900 pF TYP. 0.127 max 2.3 +0.15 4.60-0.15 +0.1 0.60-0.1 +0.28 1.50-0.1 +0.25 2.65-0.1 +0.15 5.55-0.15

📥 Download Datasheet

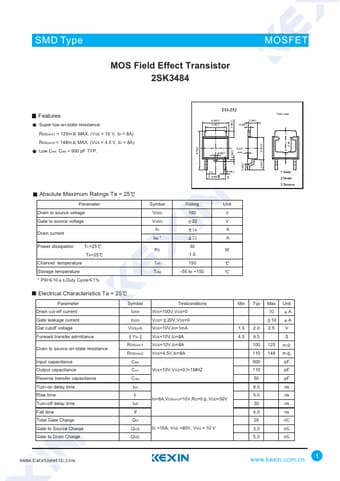

Preview of 2SK3484 PDF
