2SK3405 - MOS Field Effect Transistor

2SK3405 Description

SMD Type MOS Field Effect Transistor 2SK3405 TO-263 +0.1 1.27-0.1 MOSFET Unit: mm +0.1 1.27-0.1 +0.2 4.57-0.2 .

2SK3405 Features

* 4.5-V drive available Low on-state resistance Low gate charge QG = 34 nC TYP. (ID = 48 A, VDD = 16V, VGS = 10 V) Built-in gate protection diode Surface mount device available +0.2 5.28-0.2 +0.1 1.27-0.1 0.1max +0.1 0.81-0.1 2.54 5.08 +0.1 -0.1 +0.2 2.54-0.2 +0.2 15.25-0.2 RDS(on)1 = 9.0m MAX

📥 Download Datasheet

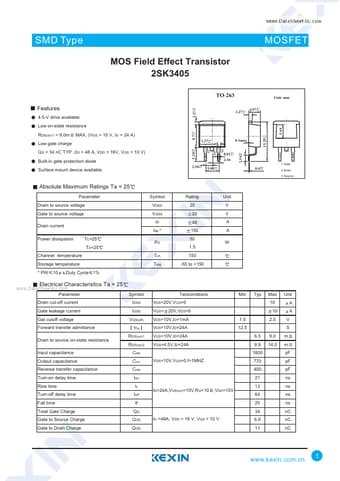

Preview of 2SK3405 PDF

Datasheet Details

Part number
2SK3405
Manufacturer
Guangdong Kexin Industrial
File Size
74.10 KB
Datasheet
2SK3405_GuangdongKexinIndustrial.pdf
Description
MOS Field Effect Transistor
