2SK3480

MOSFET

2SK3480 Features

* Super low on-state resistance: RDS(on)1 = 31 m RDS(on)2 = 36 m MAX. (VGS = 10 V, ID = 25A) +0.2 8.7-0.2 MAX. (VGS = 4.5 V, ID = 25 A) Low Ciss: Ciss = 3600 pF TYP. Built-in gate protection diode +0.1 1.27-0.1 0.1max +0.1 0.81-0.1 +0.2 5.28-0.2 2.54 5.08 +0.1 -0.1 +0.2 2.54-0.2 +0.2 15.25-0.

2SK3480 Datasheet (64.08 KB)

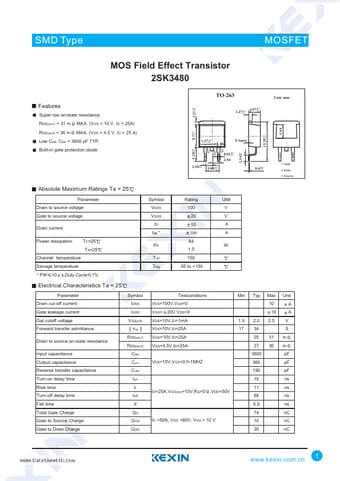

Preview of 2SK3480 PDF

Datasheet Details

Part number:

2SK3480

Manufacturer:

Guangdong Kexin Industrial

File Size:

64.08 KB

Description:

Mosfet.
