2SK3404

MOS Field Effect Transistor

2SK3404 Features

* 4.5-V drive available Low on-state resistance +0.2 8.7-0.2 RDS(on)1 = 14 m Low gate charge MAX. (VGS = 10 V, ID = 20 A) +0.1 1.27-0.1 0.1max +0.1 0.81-0.1 +0.2 5.28-0.2 QG = 25 nC TYP. (ID = 40 A, VDD = 24 V, VGS = 10 V) Built-in gate protection diode Surface mount device available 2.54 5.08

2SK3404 Datasheet (74.02 KB)

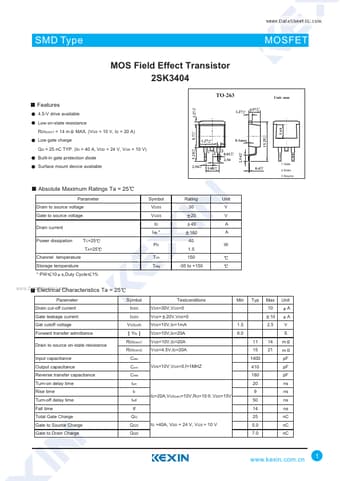

Preview of 2SK3404 PDF

Datasheet Details

Part number:

2SK3404

Manufacturer:

Guangdong Kexin Industrial

File Size:

74.02 KB

Description:

Mos field effect transistor.
