HM2301 - P-Channel Enhancement Mode Power MOSFET

Product Overview

H&M Semiconductor

📥 Download Datasheet

HM2301 P-Channel Enhancement Mode Power MOSFET by H&M Semiconductor - Datasheet Preview — Datasheet preview – HM2301

Datasheet Details

Part number	HM2301
Manufacturer	H&M Semiconductor
File Size	490.21 KB
Description	P-Channel Enhancement Mode Power MOSFET
Datasheet	HM2301 Datasheet

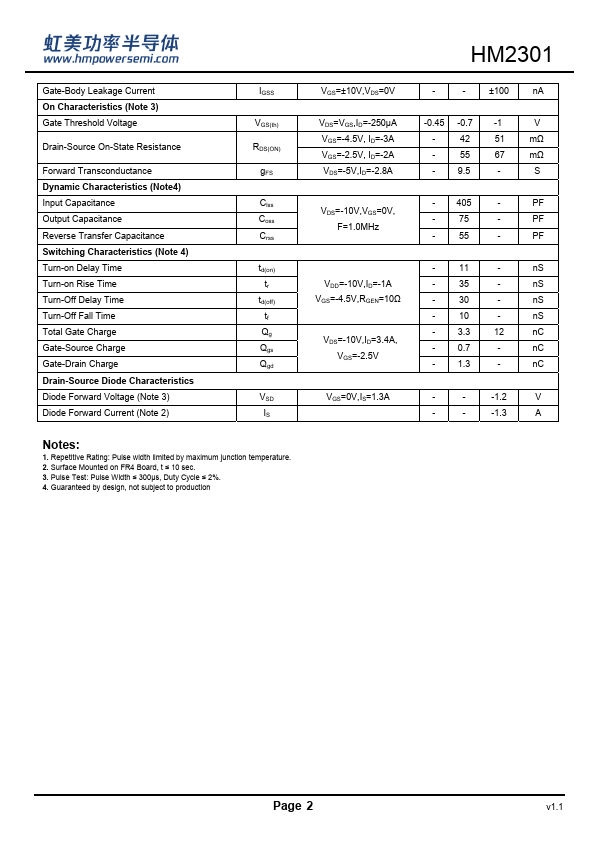

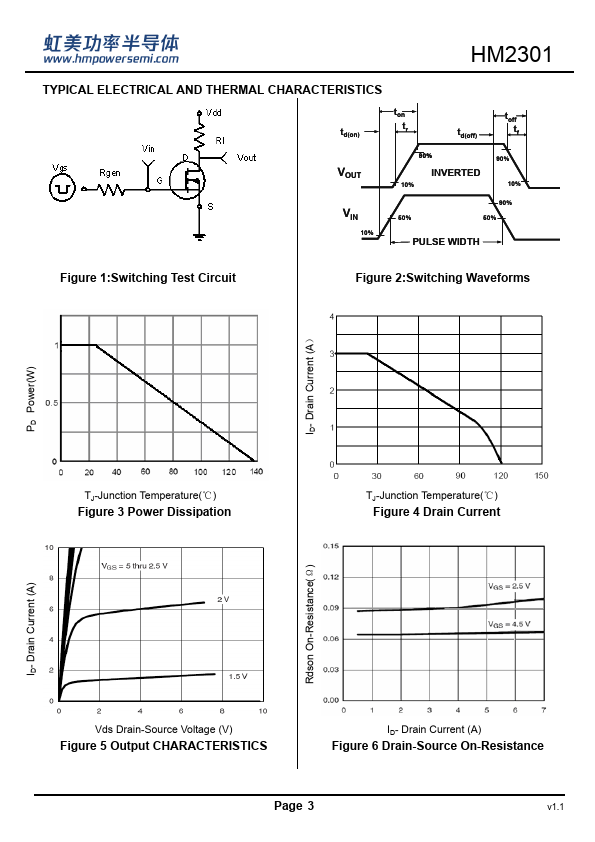

Additional preview pages of the HM2301 datasheet.

Product details

Description

The HM2301 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V.

Features

VDS = -20V,ID = 3.4A RDS(ON) < 67mΩ @ VGS=-2.5V RDS(ON) < 51mΩ @ VGS=-4.5V.
High Power and current handing capability.
Lead free product is acquired.

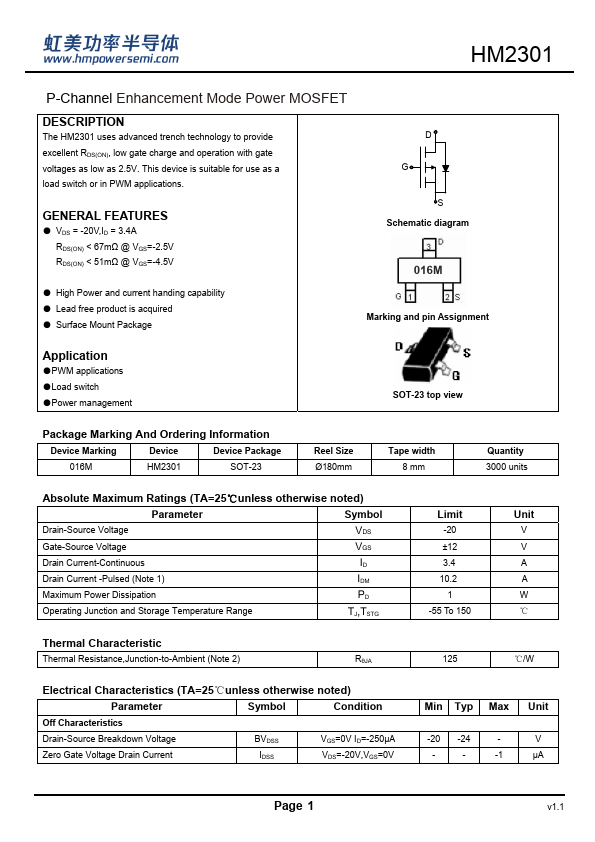

Surface Mount Package D G S Schematic diagram 016M Marking and pin Assignment.
