HM2302BJR

N-Channel Enhancement Mode Power MOSFET

H&M Semiconductor

Download Datasheet (765.14 KB)

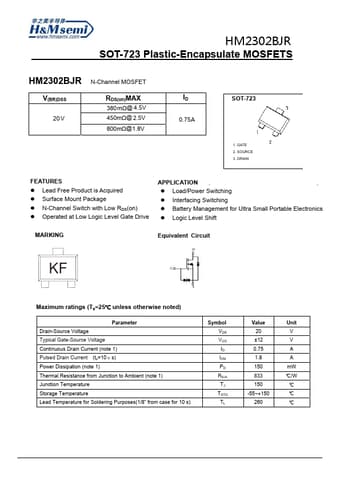

HM2302BJR Datasheet Preview — Preview of HM2302BJR Datasheet

Datasheet Details

Part number:

HM2302BJR

Manufacturer:

H&M Semiconductor

File Size:

765.14 KB

Description:

N-channel enhancement mode power mosfet.
J HM2302BJR SOT-723 Plastic-Encapsulate MOSFETS HM2302BJR N-Channel MOSFET V(BR)DSS 20 V RDS(on.
)MAX 380mΩ@ 4.5V 450mΩ@ 2.5V 800mΩ@1.8V ID 0.75A SOT-723 1. GATE 2. SOURCE 3. DRAIN FEATURES z Le.

✔ HM2302BJR Features

z Lead Free Product is Acquired z Surface Mount Package z N-Channel Switch with Low RDS(on) z Operated at Low Logic Level Gate Drive APPLICATION z Load/Power Switching z
