HM2302BWKR Datasheet - H&M Semiconductor

HM2302BWKR, Dual N-Channel Enhancement Mode Field Effect Transistor

HM2302BWKR +0%:.5 Dual N-Channel Enhancement Mode Field Effect Transistor General .
Features The HM2302BWKR uses advanced trench technology to SURYLGHexcellent RDS(ON), low gate charge and operation ZLWKJDWHvoltages as low as 1.

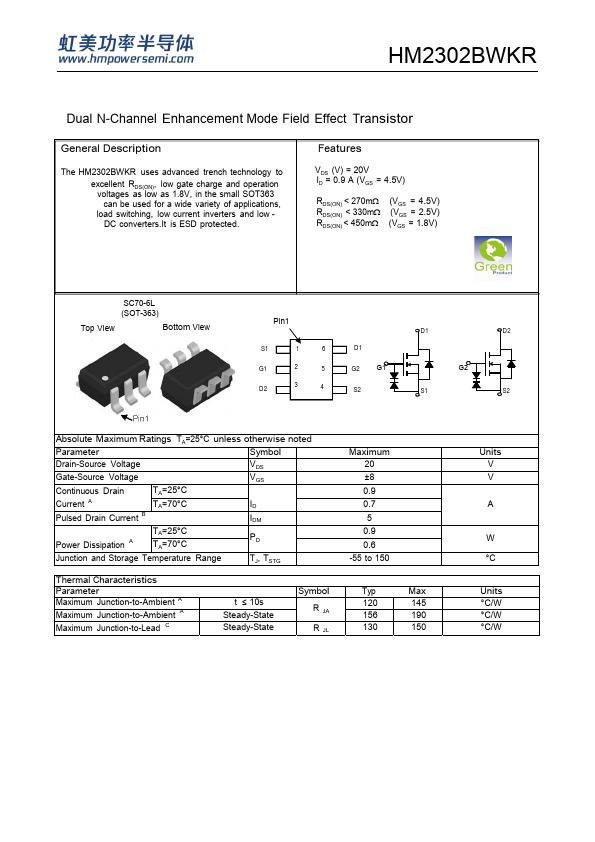

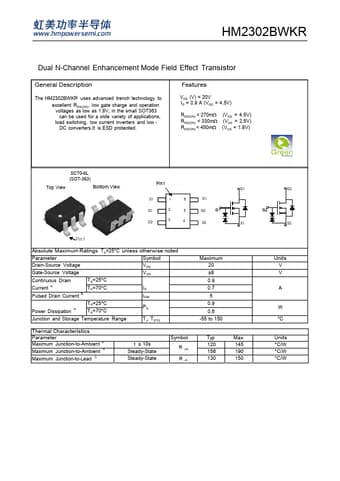

datasheet Preview Page 1 from Datasheet4u.com

HM2302BWKR-HMSemiconductor.pdf

HM2302BWKR Datasheet Preview — Preview of HM2302BWKR PDF

Datasheet Details

Part number:

HM2302BWKR

Manufacturer:

H&M Semiconductor

File Size:

390.23 KB

Description:

Dual N-Channel Enhancement Mode Field Effect Transistor

Applications

* LQFOXGLQJload switching, low current inverters and low FXUUHQW'&DC converters. It is ESD protected. VDS (V) = 20V ID = 0.9 A (VGS = 4.5V) RDS(ON)
