HM2302DR Datasheet - H&M Semiconductor

N-Channel Enhancement Mode Power MOSFET

HM2302DR Features

* RDS(ON)= 270 mΩ @VGS=4.5V

* RDS(ON)= 330 mΩ @VGS=2.5V

* RDS(ON)= 450 mΩ @VGS=1.8V

* Super high density cell design for extremely low RDS(ON)

* Exceptional on-resistance and maximum DC current capability

* Capable doing Cu wire bonding Absolute Maximum Ratings (TA=25℃ Unles

HM2302DR General Description

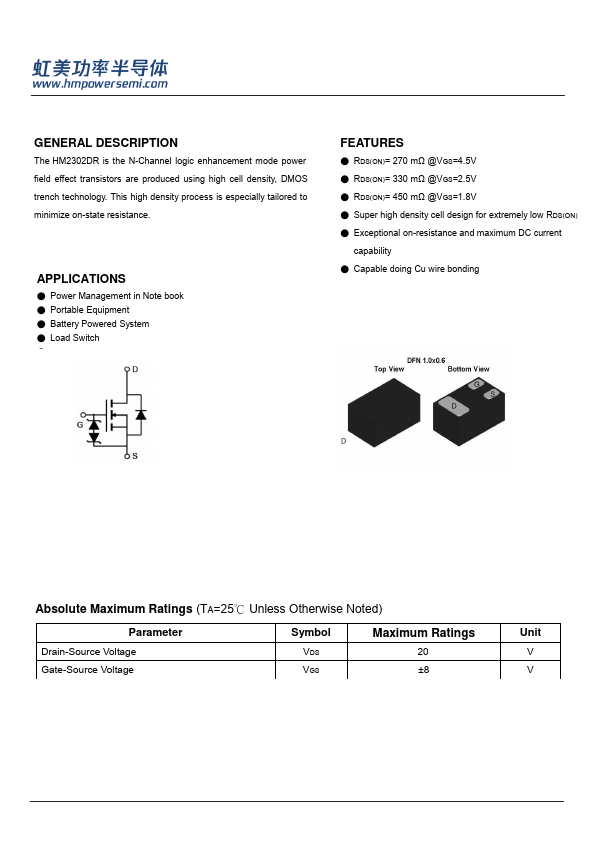

The HM2302DR is the N-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench technology. This high density process is especially tailored to minimize on-state resistance. APPLICATIONS * Power Management in Note book * Portable Equipmen.

HM2302DR Datasheet (492.65 KB)

Preview of HM2302DR PDF

Datasheet Details

Part number:

HM2302DR

Manufacturer:

H&M Semiconductor

File Size:

492.65 KB

Description:

N-channel enhancement mode power mosfet.

📁 Related Datasheet

HM2302D N-Channel Enhancement Mode Power MOSFET (H&M Semiconductor)

HM2302 N-Channel Enhancement Mode Power MOSFET (H&M Semiconductor)

HM2302 Digital temperature and humidity sensor (ETC)

HM2302 N-Channel MOSFET (VBsemi)

HM2302A N-channel MOSFET (H&M Semiconductor)

HM2302B N-Channel Trench Power MOSFET (H&M Semiconductor)

HM2302BJR N-Channel Enhancement Mode Power MOSFET (H&M Semiconductor)

HM2302BKR N-Channel Enhancement Mode Power MOSFET (H&M Semiconductor)

HM2302BSR N-Channel Enhancement Mode Power MOSFET (H&M Semiconductor)

HM2302E N-Channel Enhancement Mode Power MOSFET (H&M Semiconductor)

TAGS

HM2302DR N-Channel Enhancement Mode Power MOSFET H&M Semiconductor

Image Gallery

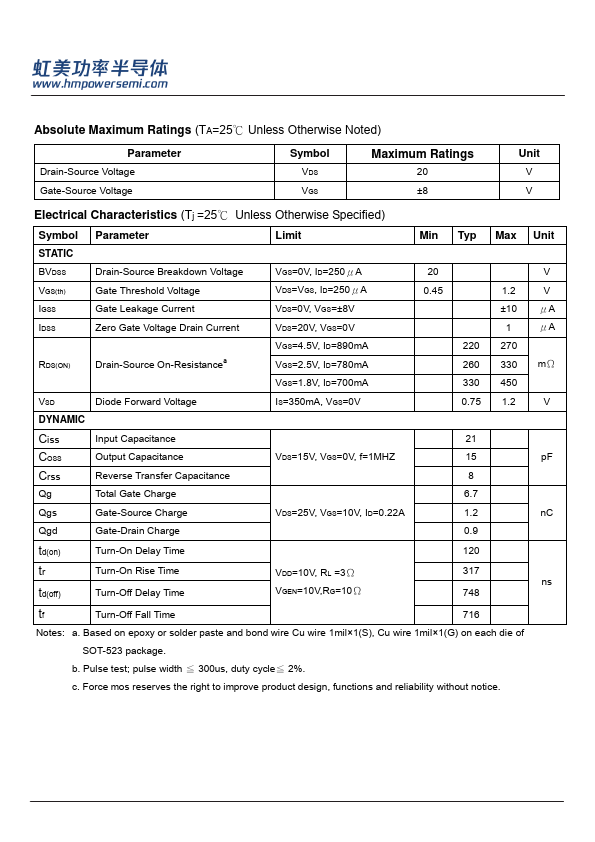

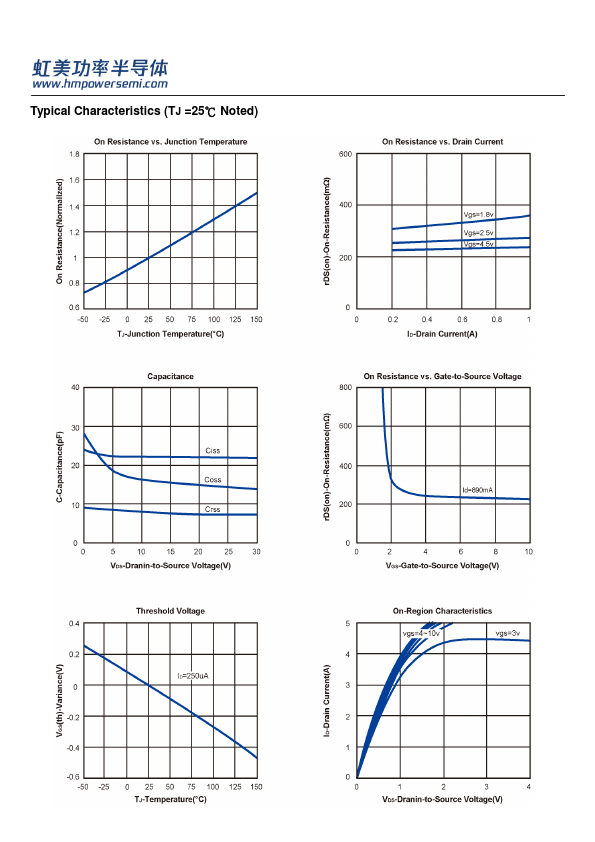

HM2302DR Datasheet Preview Page 2 HM2302DR Datasheet Preview Page 3
