Part number:
HM2302G
Manufacturer:
H&M Semiconductor
File Size:
425.50 KB
Description:
N-channel enhancement mode power mosfet.
Datasheet Details
HM2302G Features
* VDS = 20V,ID = 2.9A RDS(ON) < mΩ @ VGS=2.5V RDS(ON) < mΩ @ VGS=4.5V
* High Power and current handing capability
* Lead free product is acquired

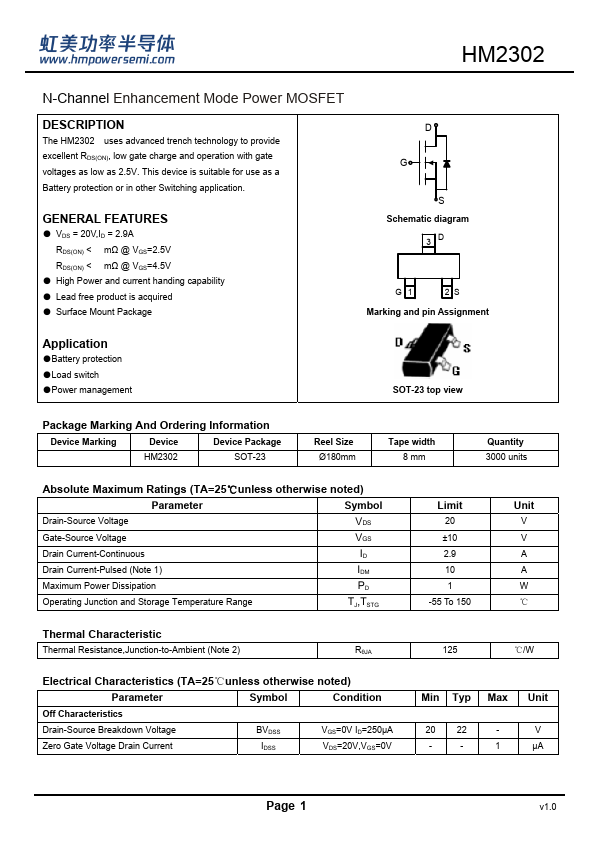

* Surface Mount Package D G S Schematic diagram 3D G1 2S Marking and pin Assignment Application
* Battery protection
Datasheet Details
HM2302G
H&M Semiconductor
425.50 KB
N-channel enhancement mode power mosfet.
