HM30N10K - N-Channel Enhancement Mode Power MOSFET

Product Overview

H&M Semiconductor

📥 Download Datasheet

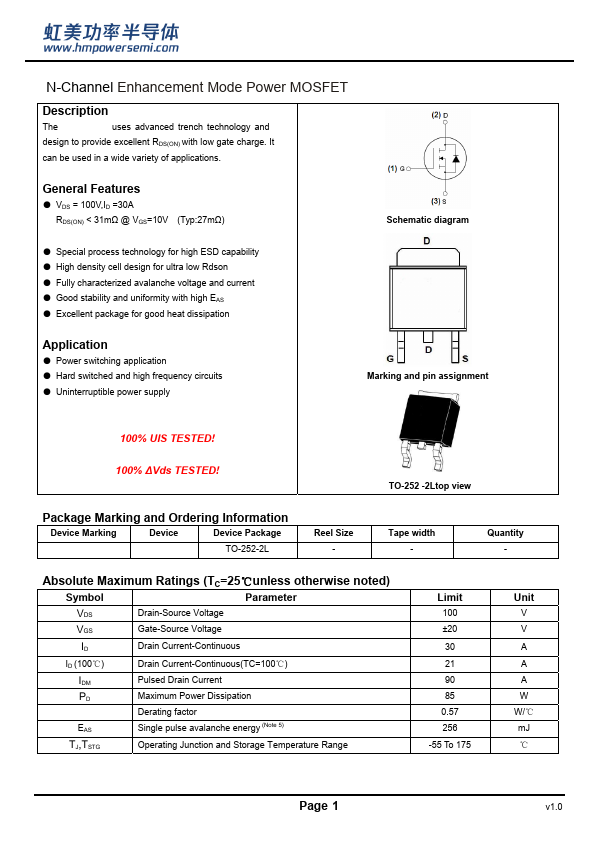

HM30N10K N-Channel Enhancement Mode Power MOSFET by H&M Semiconductor - Datasheet Preview — Datasheet preview – HM30N10K

Datasheet Details

Part number	HM30N10K
Manufacturer	H&M Semiconductor
File Size	454.60 KB
Description	N-Channel Enhancement Mode Power MOSFET
Datasheet	HM30N10K Datasheet

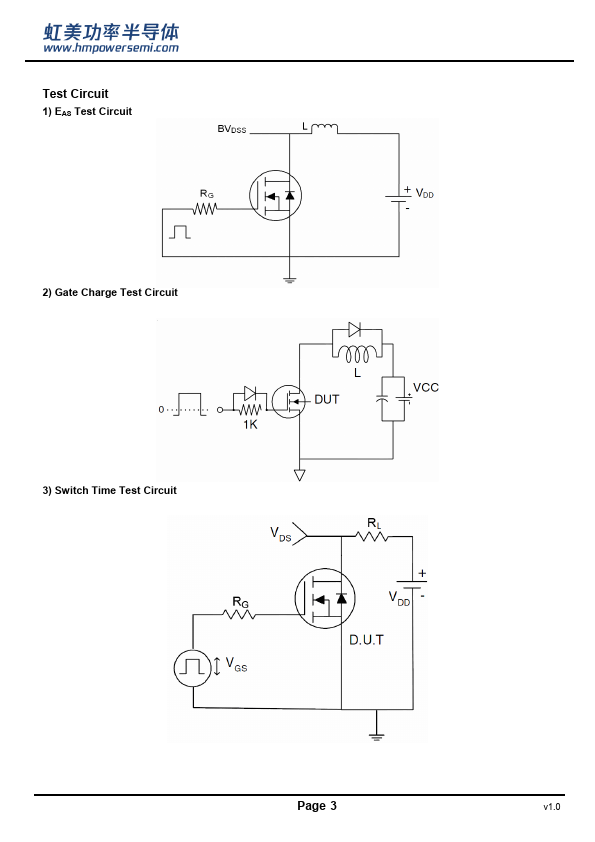

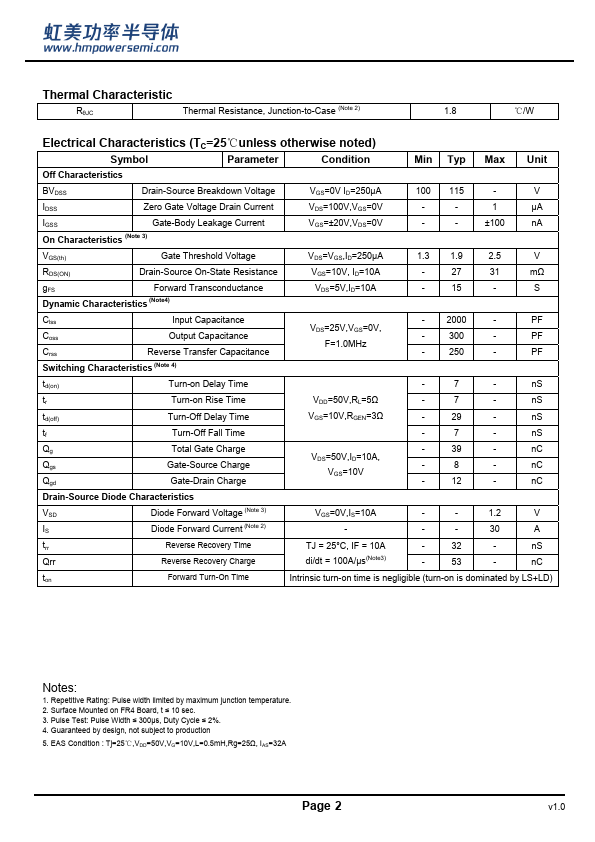

Additional preview pages of the HM30N10K datasheet.

Product details

Description

The +01.

Features

VDS = 100V,ID =30A RDS(ON) < 31mΩ @ VGS=10V (Typ:27mΩ).
Special process technology for high ESD capability.
High density cell design for ultra low Rdson.
Fully characterized avalanche voltage and current.
Good stability and uniformity with high EAS.
Excellent package for good heat dissipation Schematic diagram +01.
