HM30N04D - N-Channel Enhancement Mode Power MOSFET

Product Overview

📥 Download Datasheet

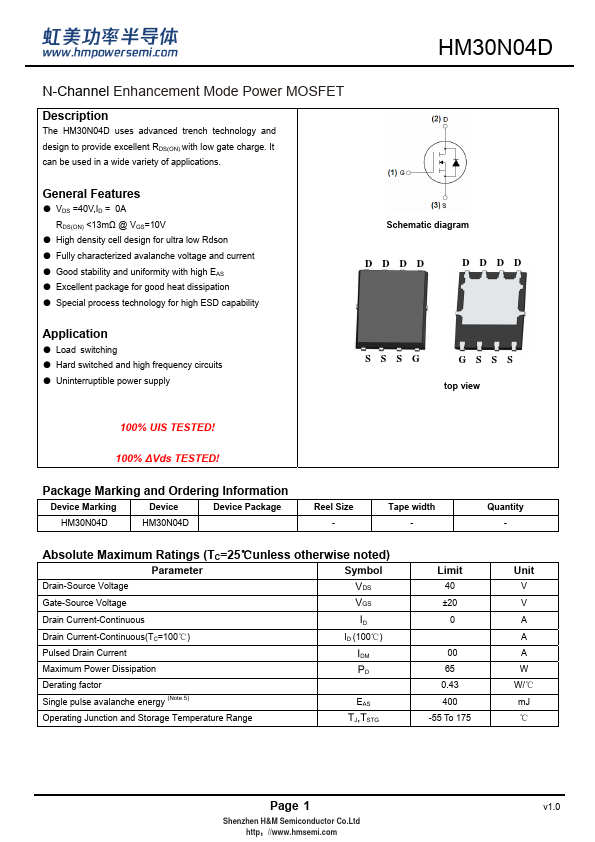

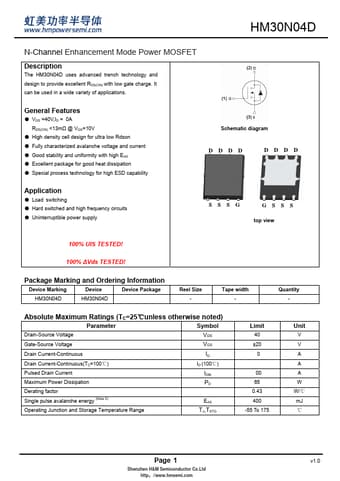

Datasheet preview – HM30N04D

Datasheet Details

Part number HM30N04D
Manufacturer H&M Semiconductor
File Size 503.59 KB
Description N-Channel Enhancement Mode Power MOSFET
Datasheet download datasheet HM30N04D Datasheet

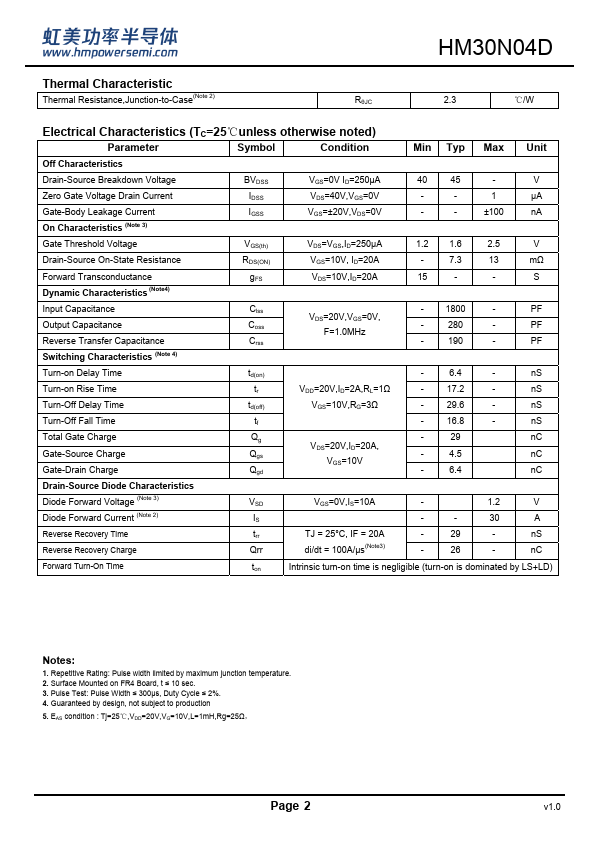

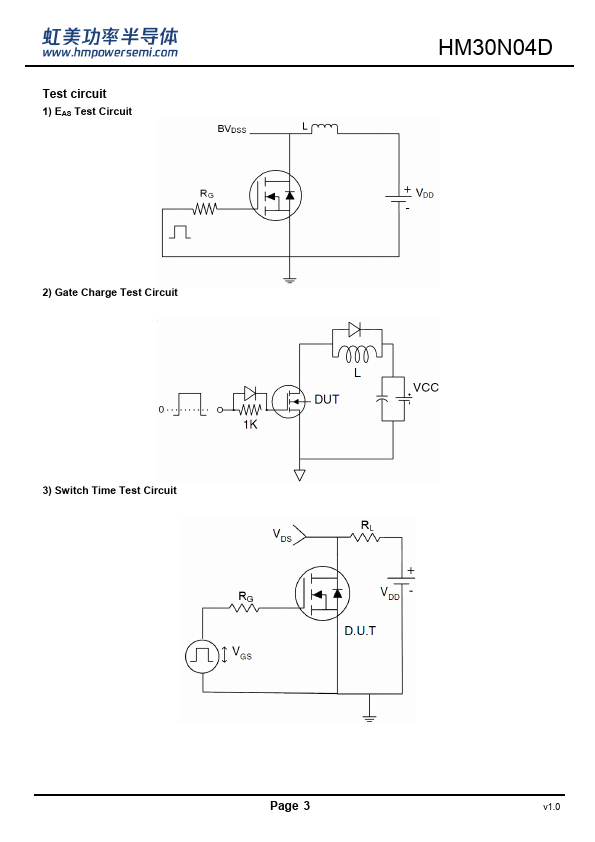

Additional preview pages of the HM30N04D datasheet.

Product details

Description

The HM30N04D uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

Features
