HM3207D - N-Channel Enhancement Mode Power MOSFET

Product Overview

H&M Semiconductor

📥 Download Datasheet

HM3207D N-Channel Enhancement Mode Power MOSFET by H&M Semiconductor - Datasheet Preview — Datasheet preview – HM3207D

Datasheet Details

Part number	HM3207D
Manufacturer	H&M Semiconductor
File Size	288.54 KB
Description	N-Channel Enhancement Mode Power MOSFET
Datasheet	HM3207D Datasheet

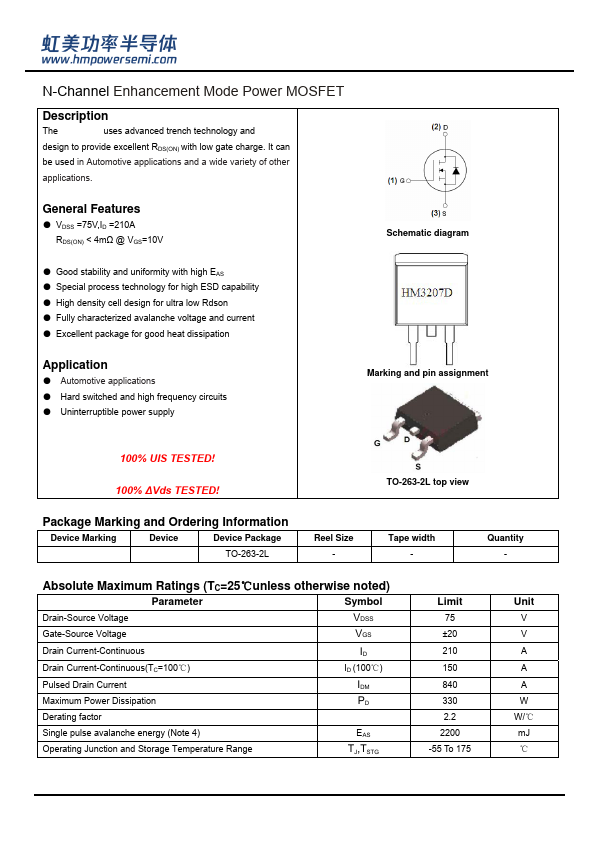

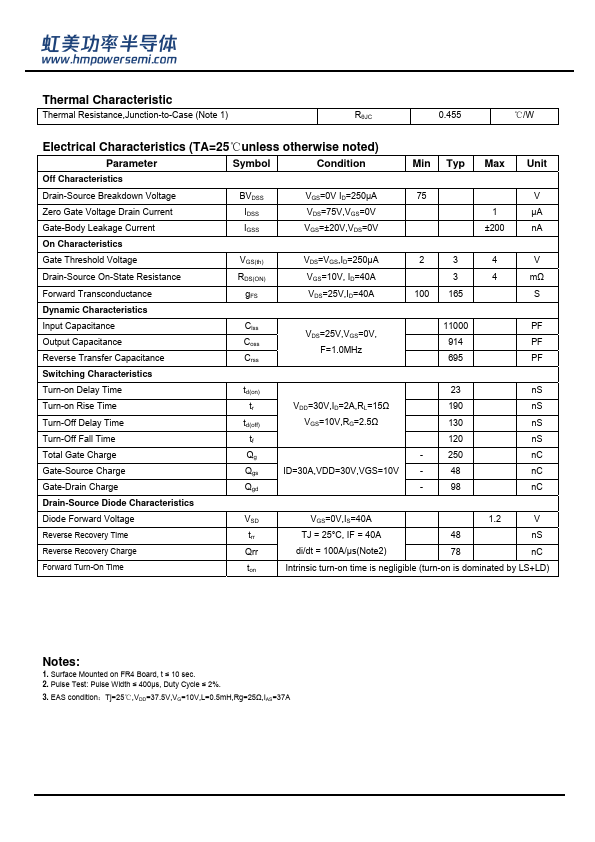

Additional preview pages of the HM3207D datasheet.

Product details

Description

The +0' uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

Features

VDSS =75V,ID =210A RDS(ON) < 4mΩ @ VGS=10V.
Good stability and uniformity with high EAS.
Special process technology for high ESD capability.
High density cell design for ultra low Rdson.
Fully characterized avalanche voltage and current.
Excellent package for good heat dissipation Schematic diagram.
