HM35P03 Datasheet - H&M Semiconductor

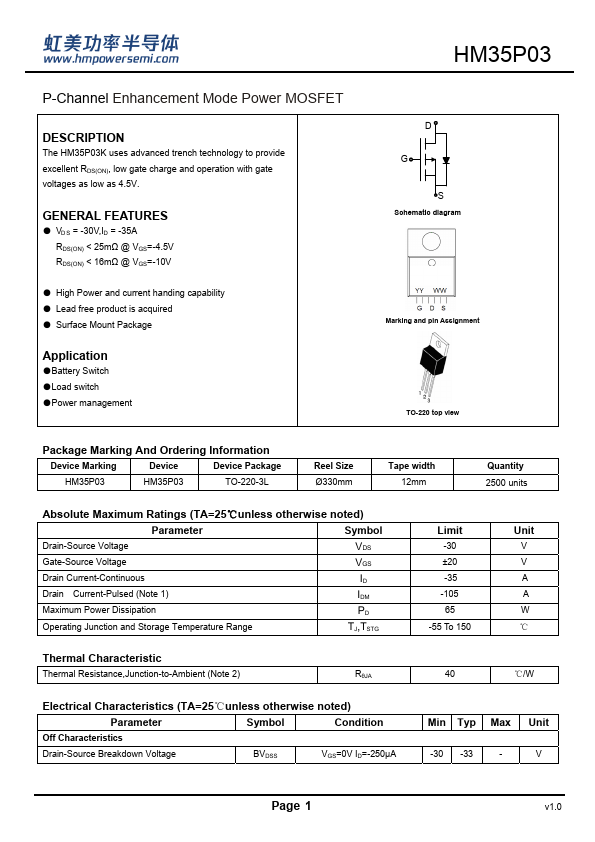

HM35P03 P-Channel Enhancement Mode Power MOSFET

HM35P03 Features

* VDS = -30V,ID = -35A RDS(ON) < 25mΩ @ VGS=-4.5V RDS(ON) < 16mΩ @ VGS=-10V

* High Power and current handing capability

* Lead free product is acquired

* Surface Mount Package Application

* Battery Switch

* Load switch

* Power management D G S Schematic diagram Marking and

HM35P03-HMSemiconductor.pdf

Preview of HM35P03 PDF

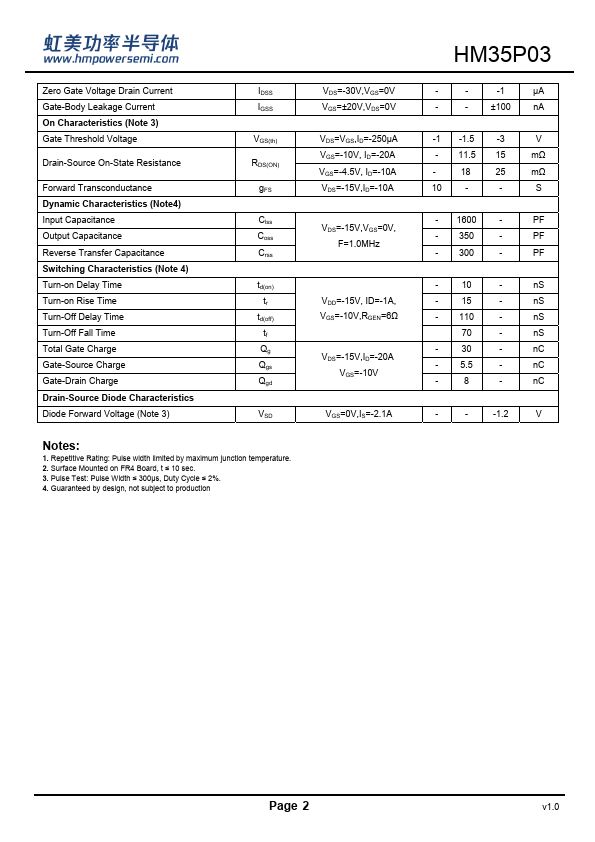

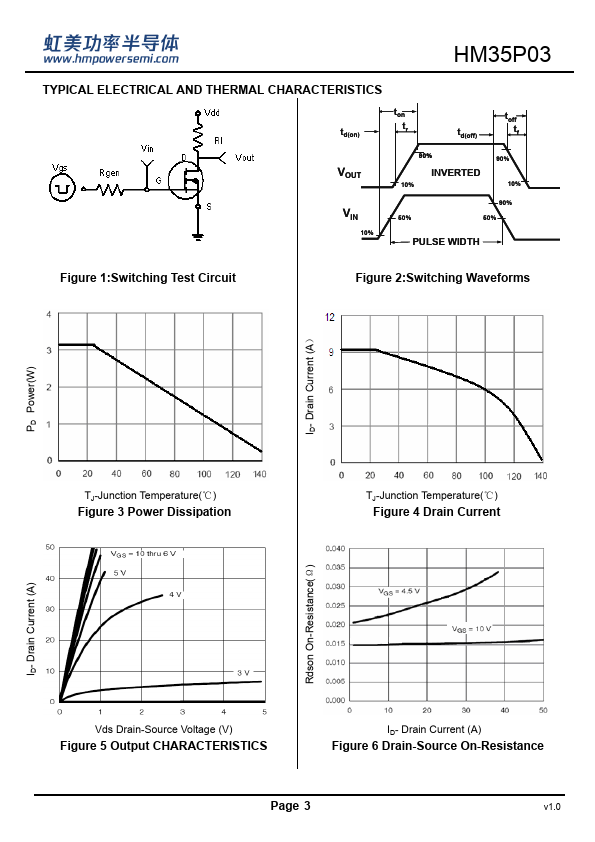

HM35P03 Datasheet Preview Page 2 HM35P03 Datasheet Preview Page 3

Datasheet Details

Part number:

HM35P03

Manufacturer:

H&M Semiconductor

File Size:

814.51 KB

Description:

P-channel enhancement mode power mosfet.
