HM4264A - N-Channel Enhancement Mode Power MOSFET

Product Overview

H&M Semiconductor

📥 Download Datasheet

HM4264A N-Channel Enhancement Mode Power MOSFET by H&M Semiconductor - Datasheet Preview — Datasheet preview – HM4264A

Datasheet Details

Part number	HM4264A
Manufacturer	H&M Semiconductor
File Size	617.66 KB
Description	N-Channel Enhancement Mode Power MOSFET
Datasheet	HM4264A Datasheet

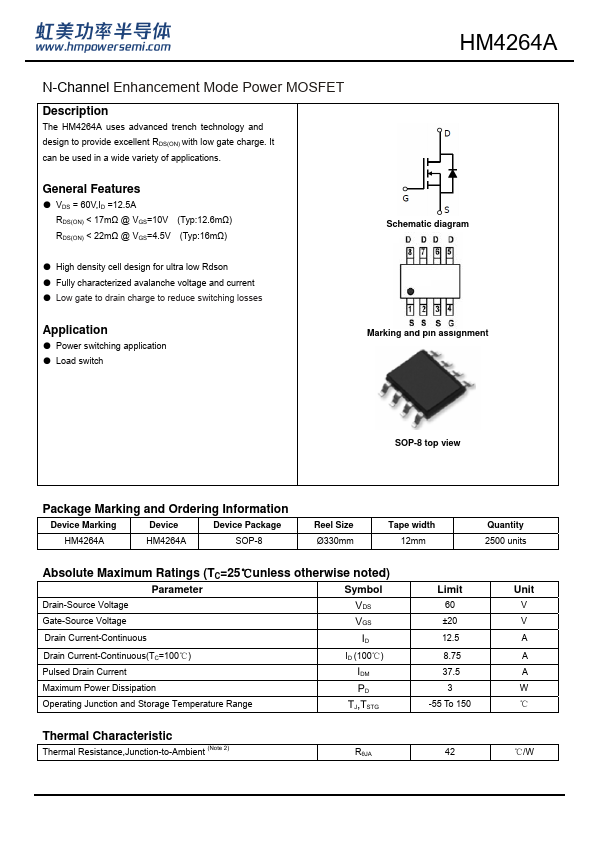

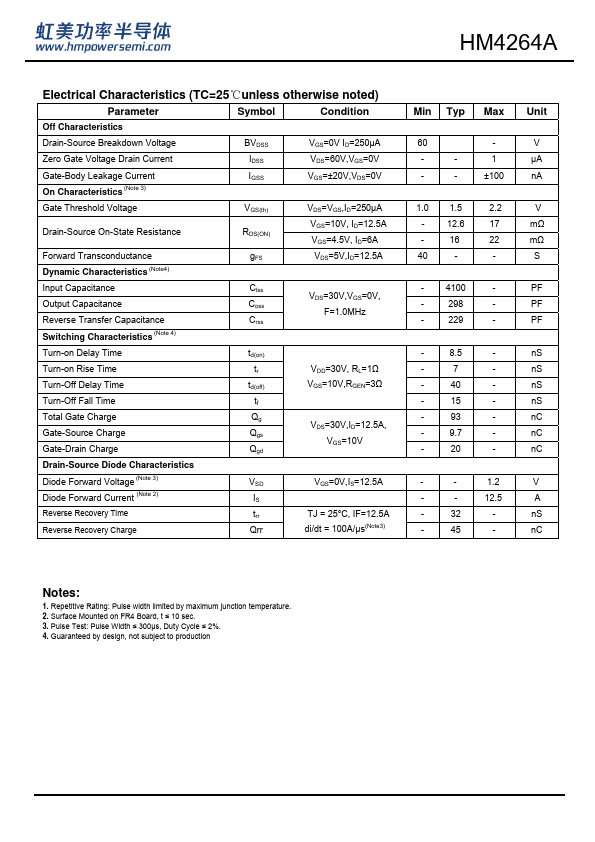

Additional preview pages of the HM4264A datasheet.

Product details

Description

The HM4264A uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

Features

VDS = 60V,ID =12.5A RDS(ON) < 17mΩ @ VGS=10V (Typ:12.6mΩ) RDS(ON) < 22mΩ @ VGS=4.5V (Typ:16mΩ).
High density cell design for ultra low Rdson.
Fully characterized avalanche voltage and current.
Low gate to drain charge to reduce switching losses Schematic diagram.
