HM4402D - N-Channel Enhancement Mode Power MOSFET

Description

The HM4402D uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

It can be used in a wide variety of applications.

Features

  • VDS =20V,ID =15A RDS(ON) < 8mΩ @ VGS=4.5V RDS(ON) < 8.5mΩ @ VGS=2.5V.
  • High density cell design for ultra low Rdson.
  • Fully characterized Avalanche voltage and current Schematic diagram HM4402D.

📥 Download Datasheet

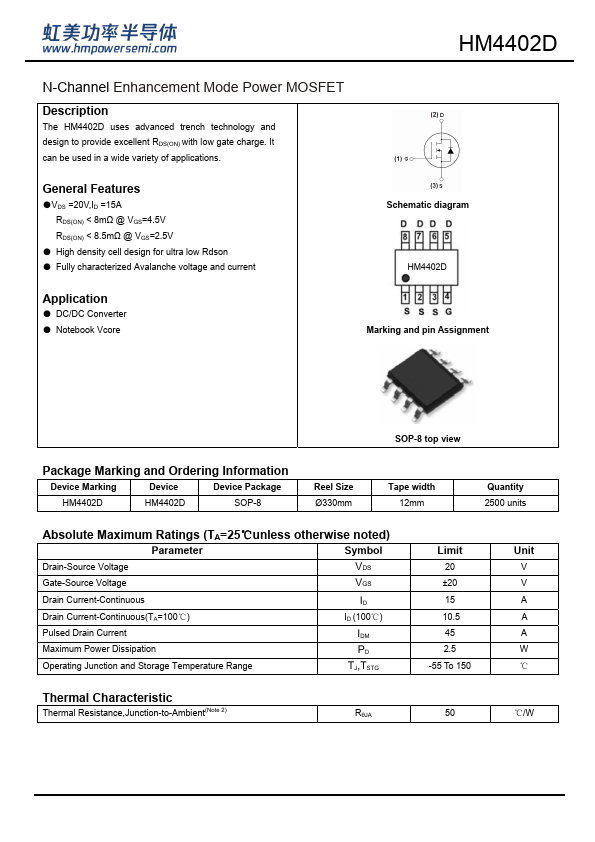

Datasheet preview – HM4402D

Datasheet Details

Part number HM4402D
Manufacturer H&M Semiconductor
File Size 538.04 KB
Description N-Channel Enhancement Mode Power MOSFET
Datasheet download datasheet HM4402D Datasheet

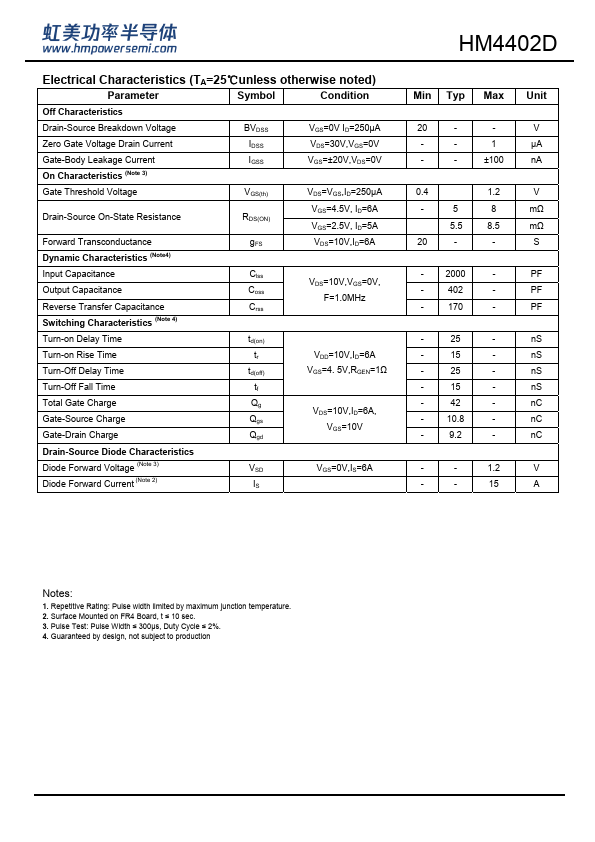

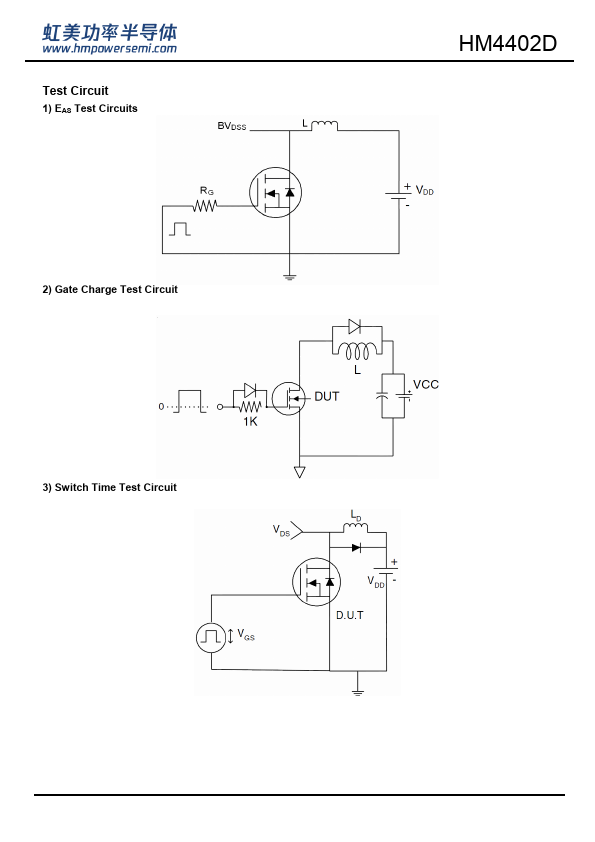

Additional preview pages of the HM4402D datasheet.
