HM4630D Datasheet - H&M Semiconductor

HM4630D N and P-Channel Enhancement Mode Power MOSFET

HM4630D Features

* N-Channel VDS = 30V,ID =5A RDS(ON) < 36mΩ @ VGS=4.5V RDS(ON) < 52mΩ @ VGS=2.5V

* P-Channel VDS = -30V,ID = -5A RDS(ON) < 6.5mΩ @ VGS=-4.5V RDS(ON) < 120mΩ @ VGS=-2.5V

* High power and current handing capability

* Lead free product is acquired

* Surface mount package N-channel

HM4630D-HMSemiconductor.pdf

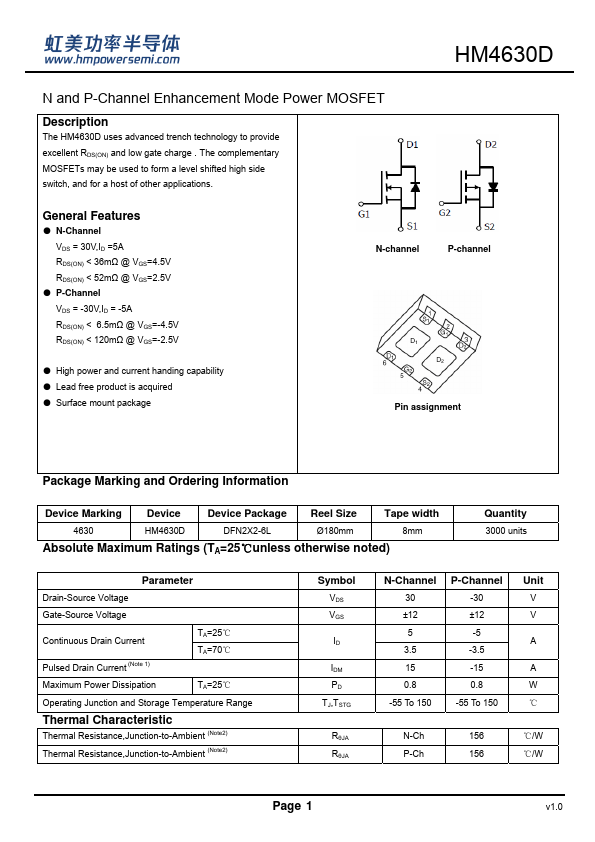

Preview of HM4630D PDF

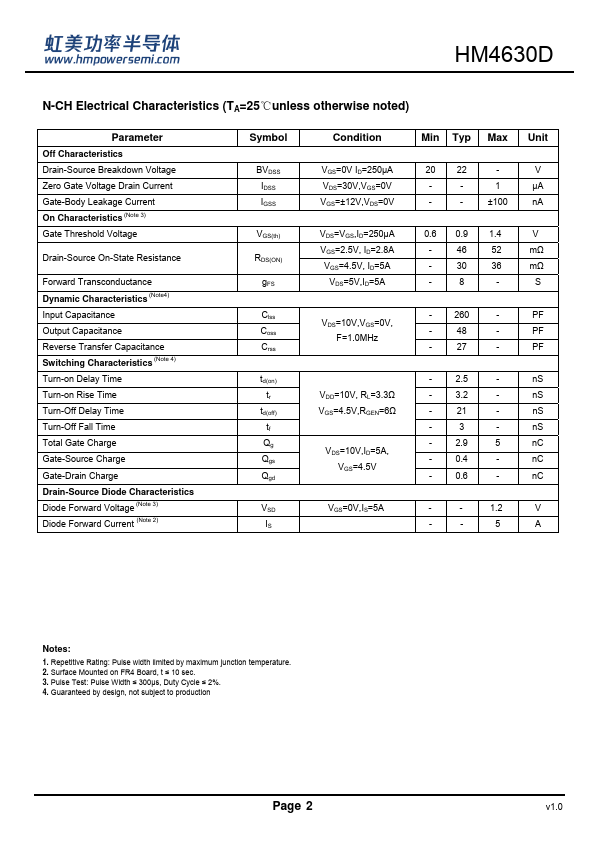

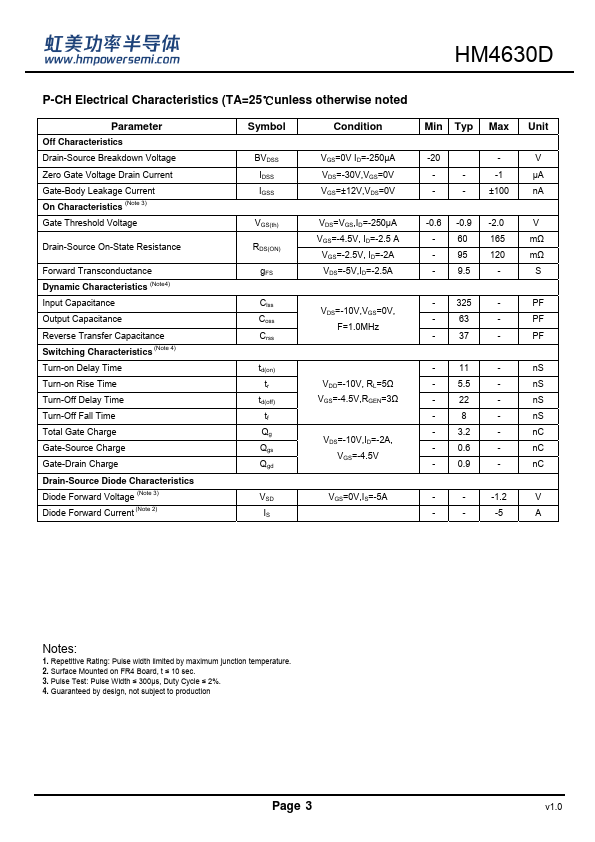

HM4630D Datasheet Preview Page 2 HM4630D Datasheet Preview Page 3

Datasheet Details

Part number:

HM4630D

Manufacturer:

H&M Semiconductor

File Size:

558.45 KB

Description:

N and p-channel enhancement mode power mosfet.
