HM50N08 - N-Channel Enhancement Mode Power MOSFET

HM50N08 Description

HM50N08 N-Channel Enhancement Mode Power MOSFET .
The HM50N08 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

HM50N08 Features

* VDS =80V,ID =50A RDS(ON) < 16mΩ @ VGS=10V (Typ:13mΩ)
* High density cell design for ultra low Rdson
* Fully characterized avalanche voltage and current
* Good stability and uniformity with high EAS
* Excellent package for good heat dissipation
* Special process technology

📥 Download Datasheet

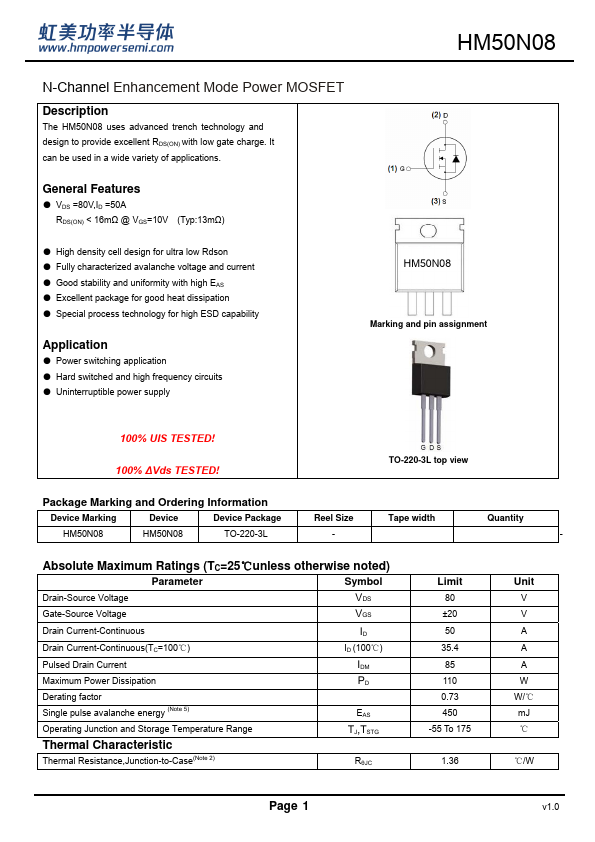

Preview of HM50N08 PDF

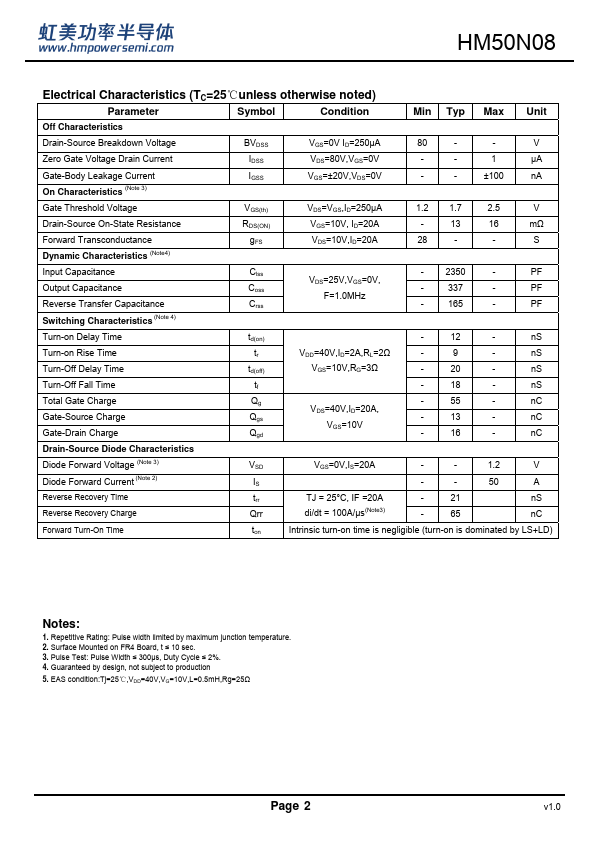

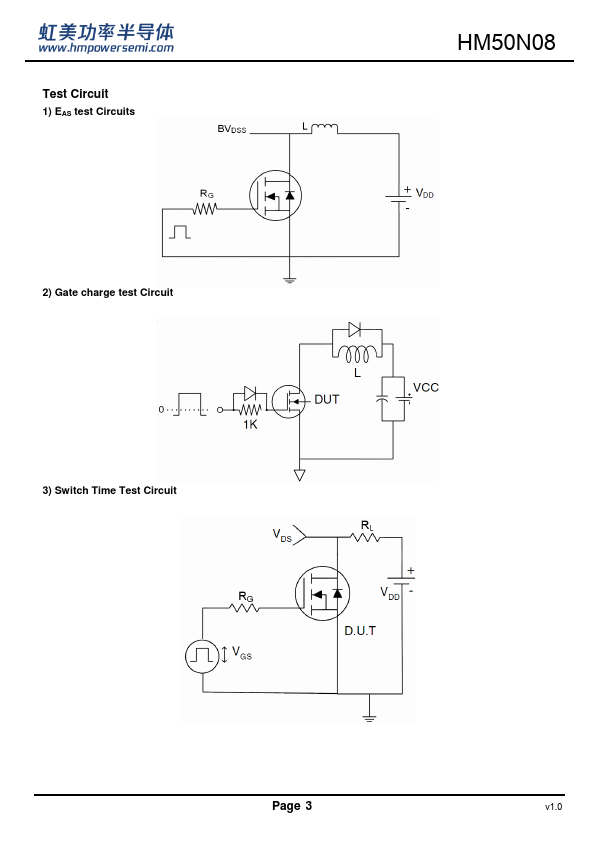

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM50N08
Manufacturer
H&M Semiconductor
File Size
441.27 KB
Datasheet
HM50N08-HMSemiconductor.pdf
Description
N-Channel Enhancement Mode Power MOSFET
