HM50N10K - N-Channel Enhancement Mode Power MOSFET

Product Overview

H&M Semiconductor

📥 Download Datasheet

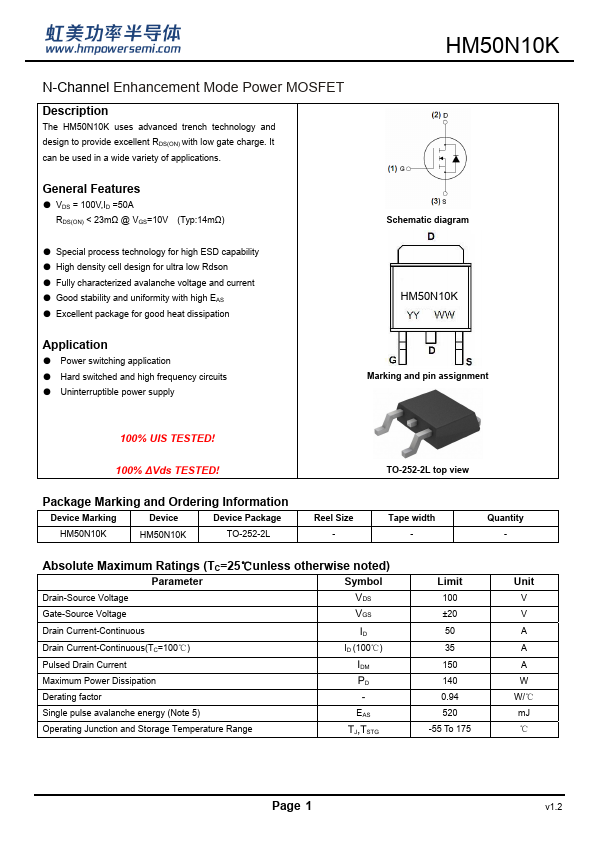

HM50N10K N-Channel Enhancement Mode Power MOSFET by H&M Semiconductor - Datasheet Preview — Datasheet preview – HM50N10K

Datasheet Details

Part number	HM50N10K
Manufacturer	H&M Semiconductor
File Size	457.40 KB
Description	N-Channel Enhancement Mode Power MOSFET
Datasheet	HM50N10K Datasheet

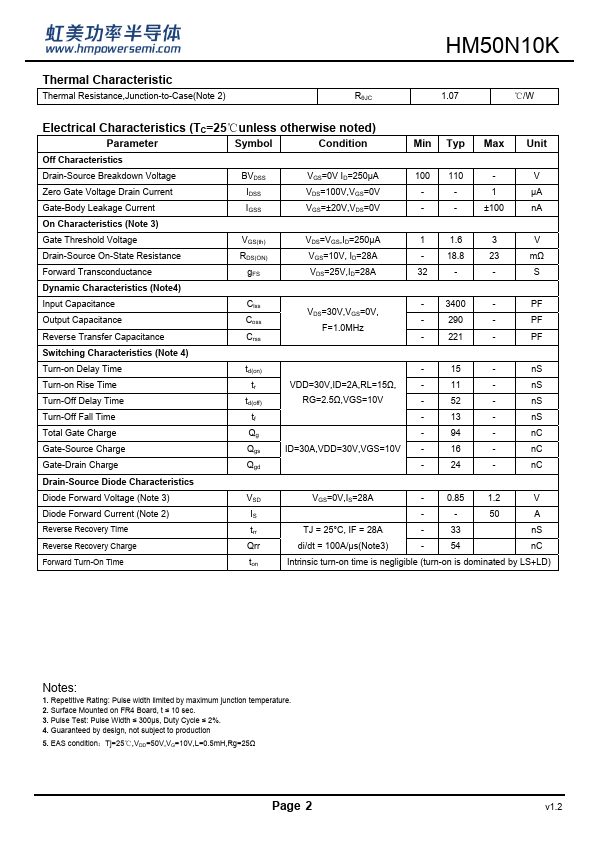

Additional preview pages of the HM50N10K datasheet.

Product details

Description

The HM50N10K uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

Features

VDS = 100V,ID =50A RDS(ON) < 23mΩ @ VGS=10V (Typ:14mΩ) Schematic diagram.
Special process technology for high ESD capability.
High density cell design for ultra low Rdson.
Fully characterized avalanche voltage and current.
Good stability and uniformity with high EAS.
Excellent package for good heat dissipation HM50N10K.
