HM60N06 Power MOSFET

📥 Download Datasheet  Datasheet Preview Page 1

Description

.
The HM60N06 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

📥 Download Datasheet

Preview of HM60N06 PDF

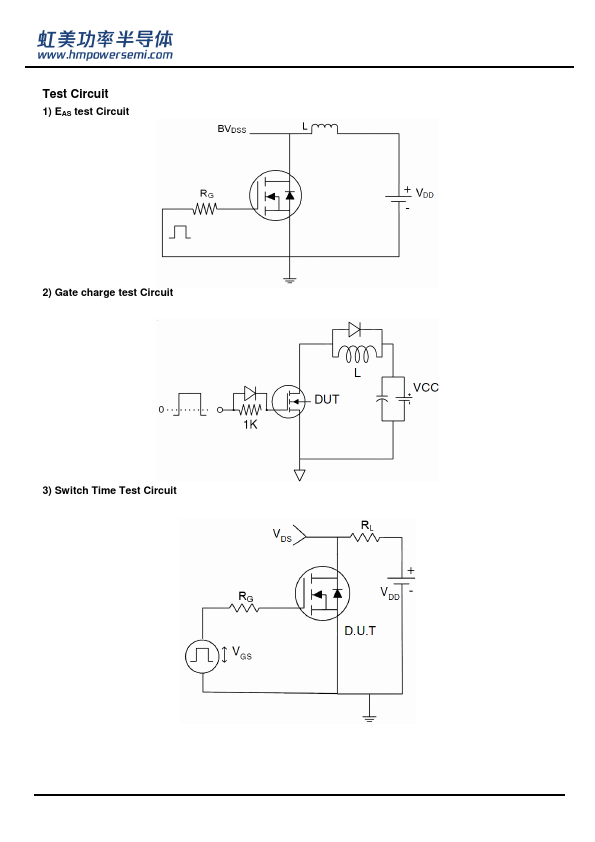

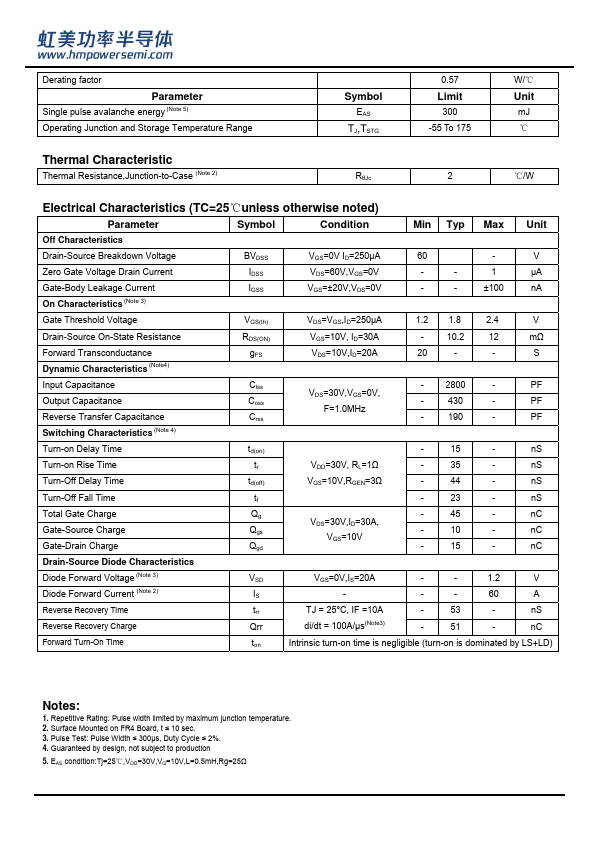

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
HM60N06
Manufacturer
H&M Semiconductor
File Size
377.08 KB
Datasheet
HM60N06-HMSemiconductor.pdf
Description
Power MOSFET

Features

* VDS = 60V,ID =60A RDS(ON) < 12mΩ @ VGS=10V (Typ:10.2mΩ)
* Special process technology for high ESD capability
* High density cell design for ultra low Rdson
* Fully characterized avalanche voltage and current
* Good stability and uniformity with high EAS
* Excellent packag
