HM60N06K - MOSFET

H&M Semiconductor

📥 Download Datasheet

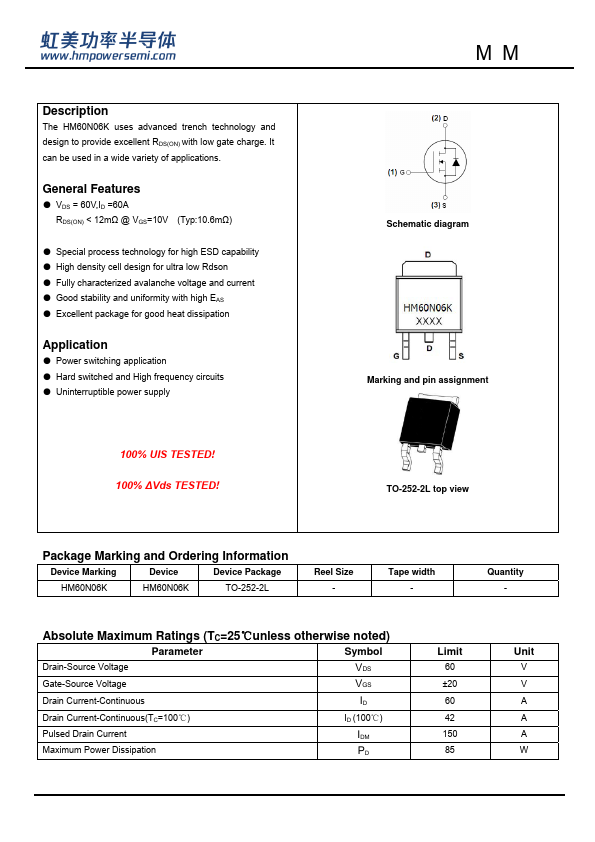

HM60N06K Datasheet Preview — Preview of HM60N06K PDF

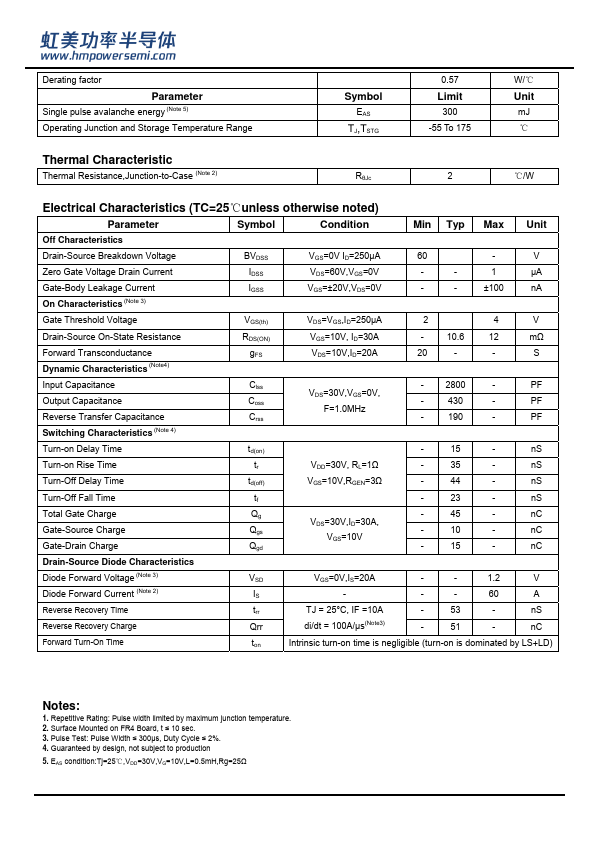

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: HM60N06K
Manufacturer: H&M Semiconductor
File Size: 465.25 KB
Datasheet: HM60N06K-HMSemiconductor.pdf
Description: MOSFET

HM60N06K Product details

Description

The HM60N06K uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

Features

VDS = 60V,ID =60A RDS(ON) < 12mΩ @ VGS=10V (Typ:10.6mΩ).
Special process technology for high ESD capability.
High density cell design for ultra low Rdson.
Fully characterized avalanche voltage and current.
Good stability and uniformity with high EAS.
Excellent package for good heat dissipation Application.
Power switching application.
Hard switched and High frequency circuits.
Uninterruptible power supply 100% UIS TESTED! 100% ∆Vds TESTED! MM Sc.
