HM60N08 - N-Channel Enhancement Mode Power MOSFET

H&M Semiconductor

📥 Download Datasheet

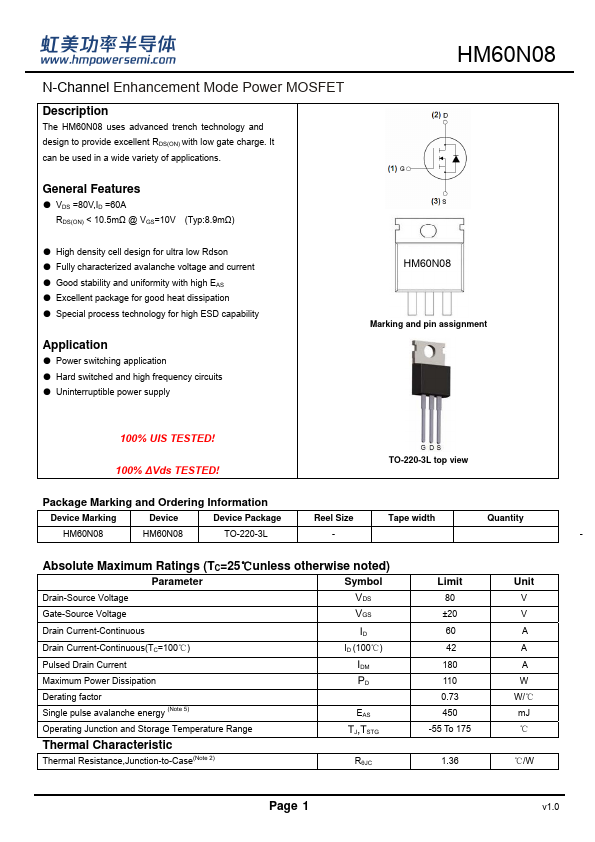

HM60N08 Datasheet Preview — Preview of HM60N08 PDF

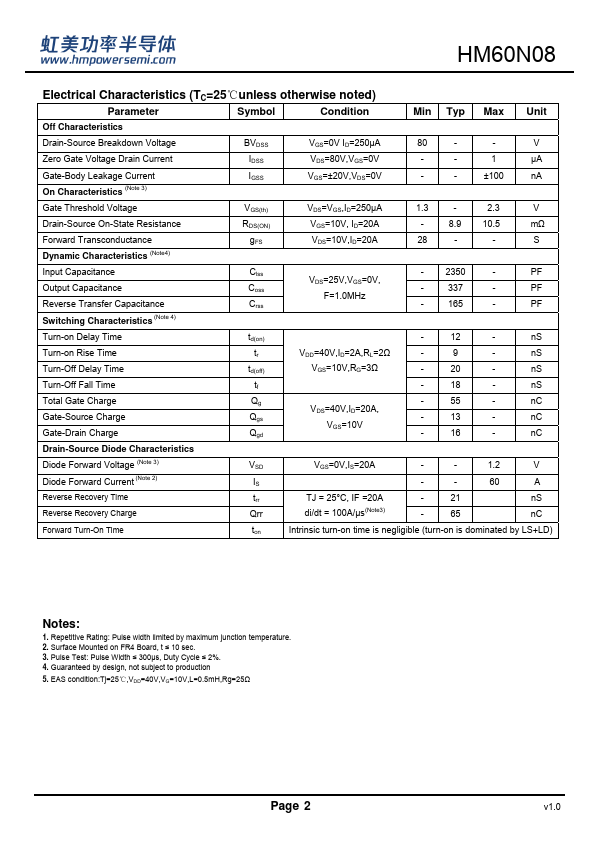

datasheet Preview Page 2

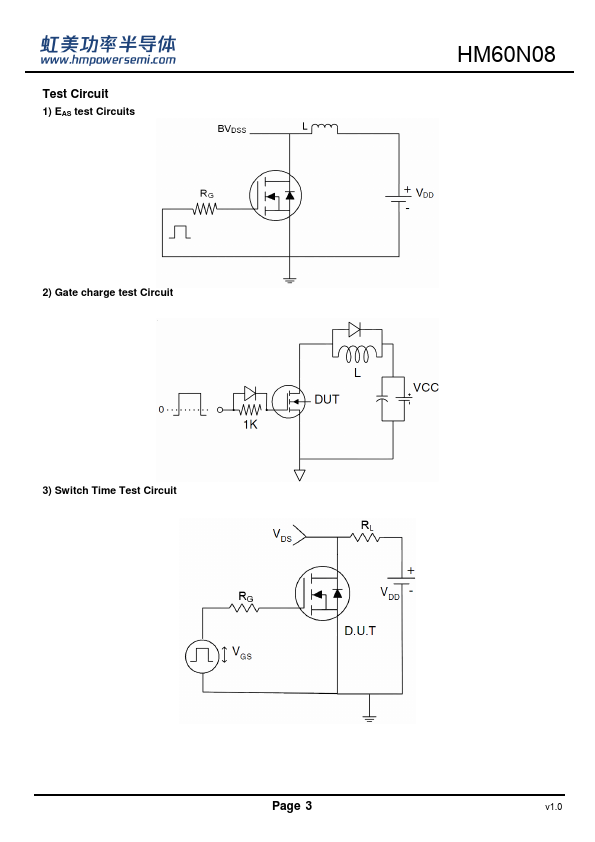

datasheet Preview Page 3

Datasheet Details

Part number: HM60N08
Manufacturer: H&M Semiconductor
File Size: 521.64 KB
Datasheet: HM60N08-HMSemiconductor.pdf
Description: N-Channel Enhancement Mode Power MOSFET

HM60N08 Product details

Description

The HM60N08 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

Features

VDS =80V,ID =60A RDS(ON) < 10.5mΩ @ VGS=10V (Typ:8.9mΩ).
High density cell design for ultra low Rdson.
Fully characterized avalanche voltage and current.
Good stability and uniformity with high EAS.
Excellent package for good heat dissipation.
Special process technology for high ESD capability Application.
Power switching application.
Hard switched and high frequency circuits.
Uninterruptible power supply HM60N08 HM60N08 Marking and pin assignmen.
