HM7530HB, HM7525HB - 100mA Low Power LDO

HM7530HB Description

HM75XXHB 100mA Low Power LDO .
The HM75XXHB series is a set of three-terminal low technology ensures low voltage drop and low power high voltage regulators implemented in quiescent.

HM7530HB Features

* Low power consumption
* Low voltage drop
* Low temperature coefficient
* High input voltage (up to 32V)
* Output voltage accuracy: tolerance ±3%

HM7530HB Applications

* Battery-powered equipment
* Communication equipment

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HM7530HB, HM7525HB. Please refer to the document for exact specifications by model.

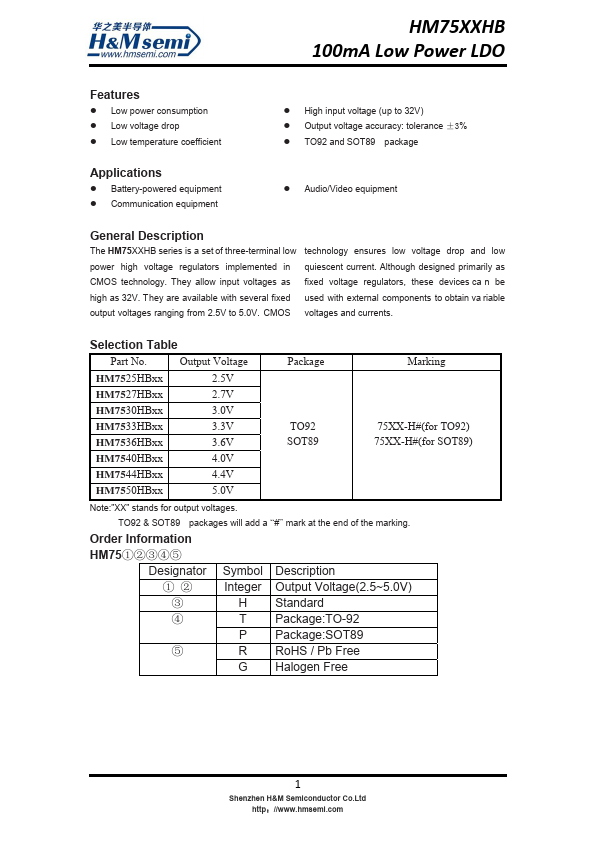

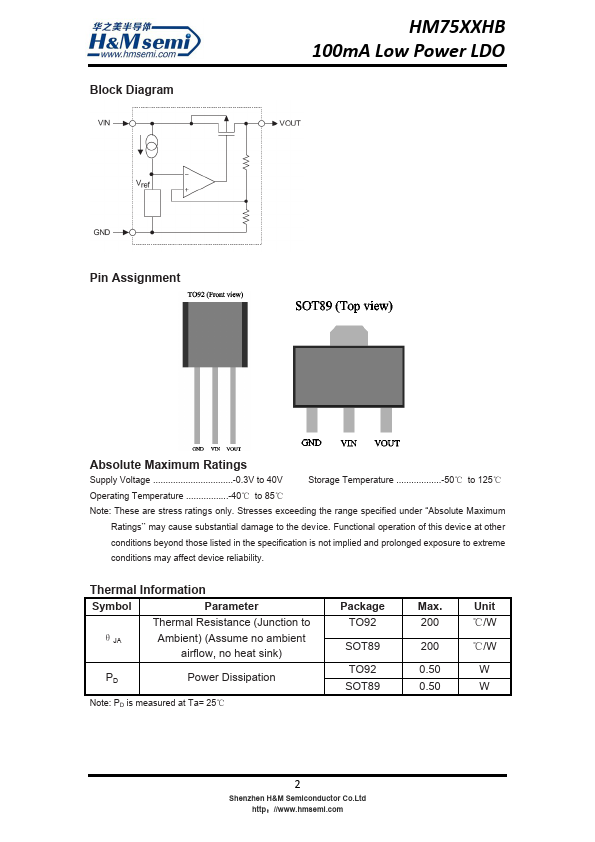

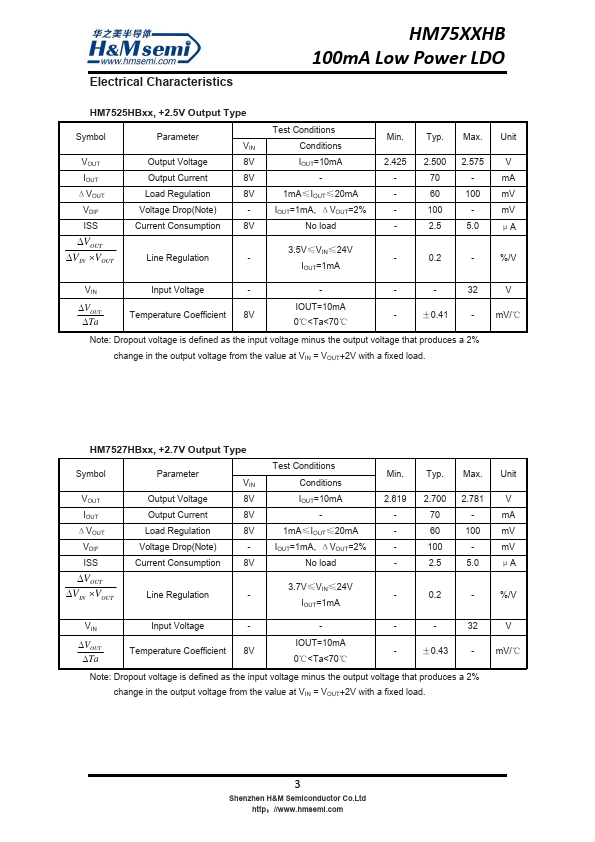

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM7530HB, HM7525HB
Manufacturer
H&M Semiconductor
File Size
824.00 KB
Datasheet
HM7525HB-HMSemiconductor.pdf
Description
100mA Low Power LDO
Note
This datasheet PDF includes multiple part numbers: HM7530HB, HM7525HB.
Please refer to the document for exact specifications by model.
