HM7536HB, HM7525HB Datasheet - H&M Semiconductor

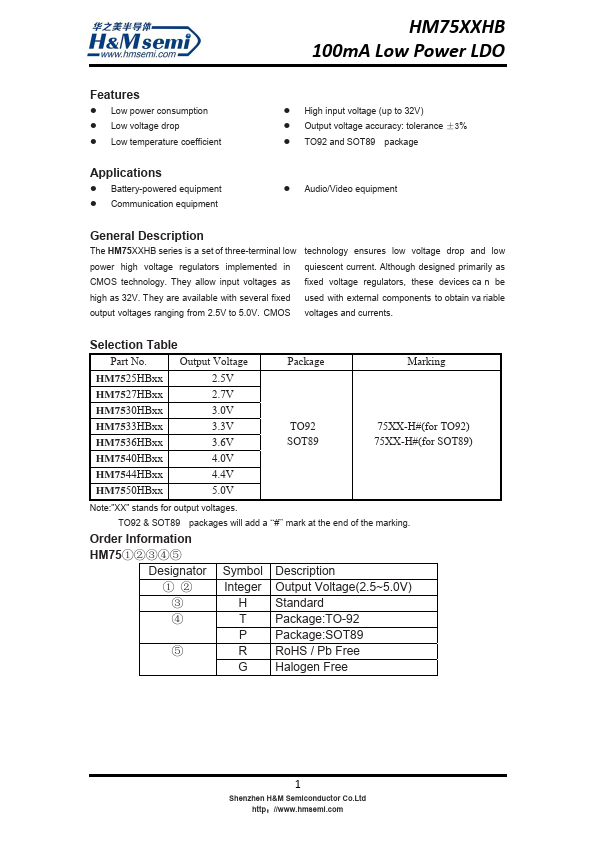

HM7536HB 100mA Low Power LDO

The HM75XXHB series is a set of three-terminal low technology ensures low voltage drop and low power high voltage regulators implemented in quiescent current. Although designed primarily as CMOS technology. They allow input voltages as fixed voltage regulators, these devices ca n be high as 32V. The.

HM7536HB Features

* Low power consumption

* Low voltage drop

* Low temperature coefficient

* High input voltage (up to 32V)

* Output voltage accuracy: tolerance ±3%

* TO92 and SOT89 package Applications

* Battery-powered equipment

* Communication equipment

* Audio/Video equipmen

HM7525HB-HMSemiconductor.pdf

This datasheet PDF includes multiple part numbers: HM7536HB, HM7525HB. Please refer to the document for exact specifications by model.

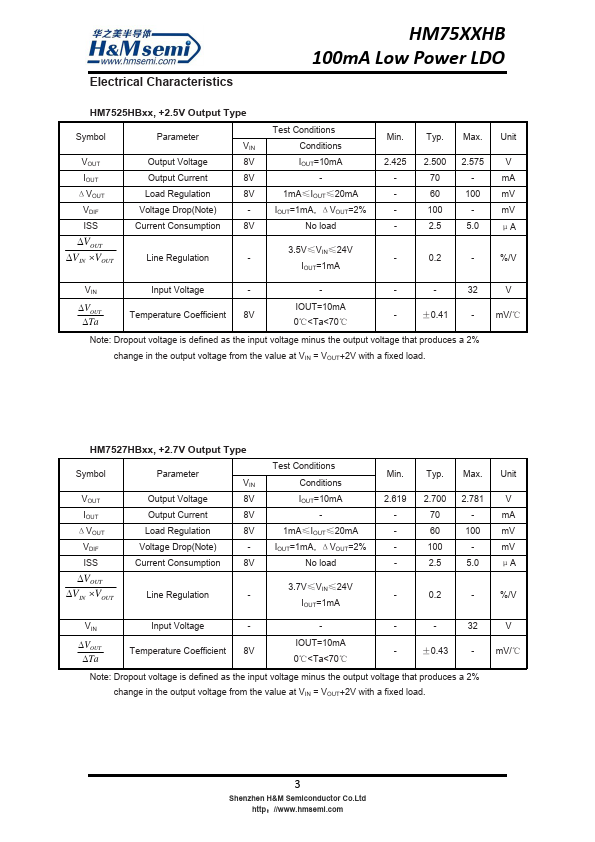

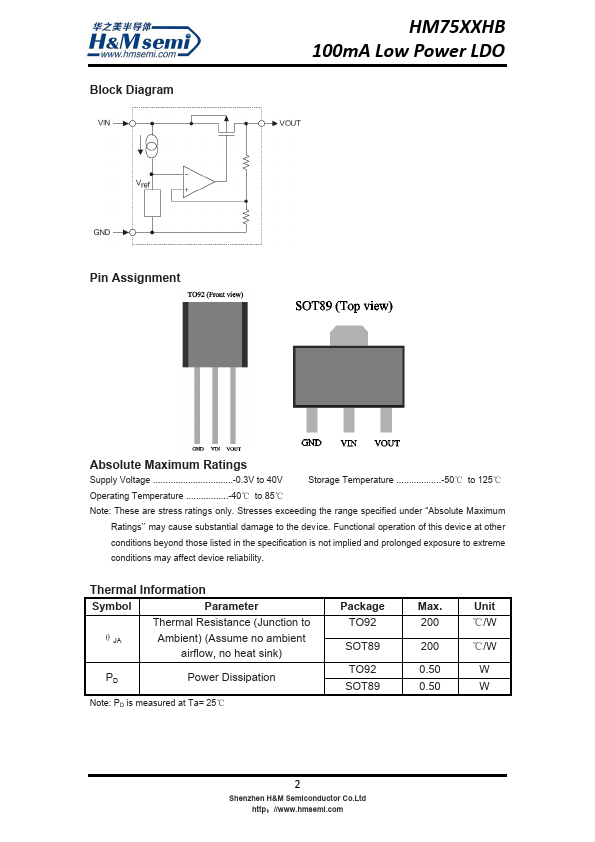

HM7536HB Datasheet Preview Page 2 HM7536HB Datasheet Preview Page 3

Datasheet Details

Part number:

HM7536HB, HM7525HB

Manufacturer:

H&M Semiconductor

File Size:

824.00 KB

Description:

100ma low power ldo.

Note:

This datasheet PDF includes multiple part numbers: HM7536HB, HM7525HB.
Please refer to the document for exact specifications by model.
