HM7533HB, HM7525HB 100mA Low Power LDO

H&M Semiconductor

Description

HM75XXHB 100mA Low Power LDO .
The HM75XXHB series is a set of three-terminal low technology ensures low voltage drop and low power high voltage regulators implemented in quiescent.

📥 Download Datasheet

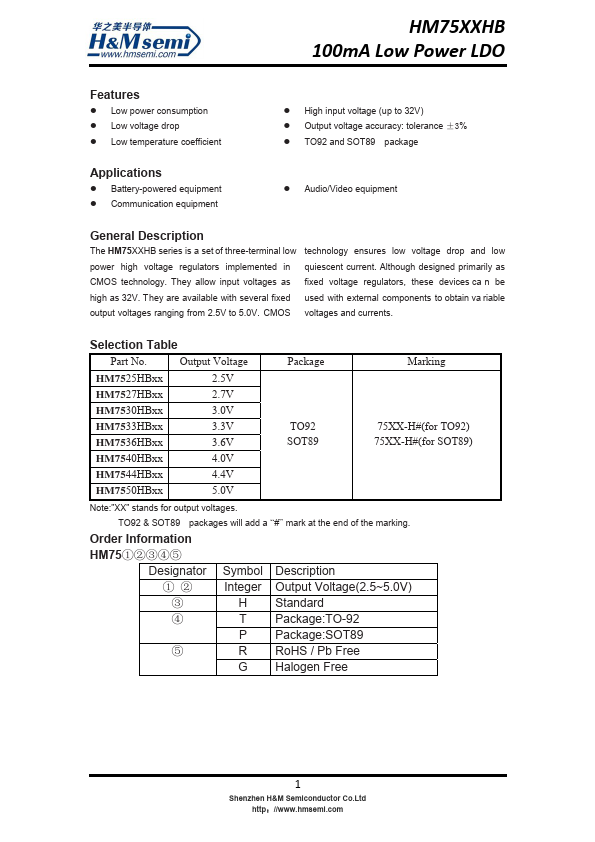

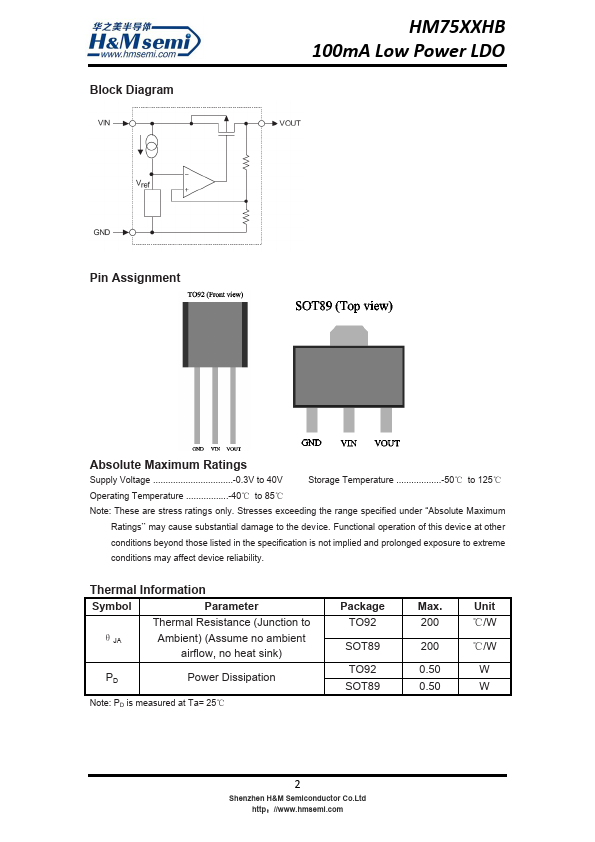

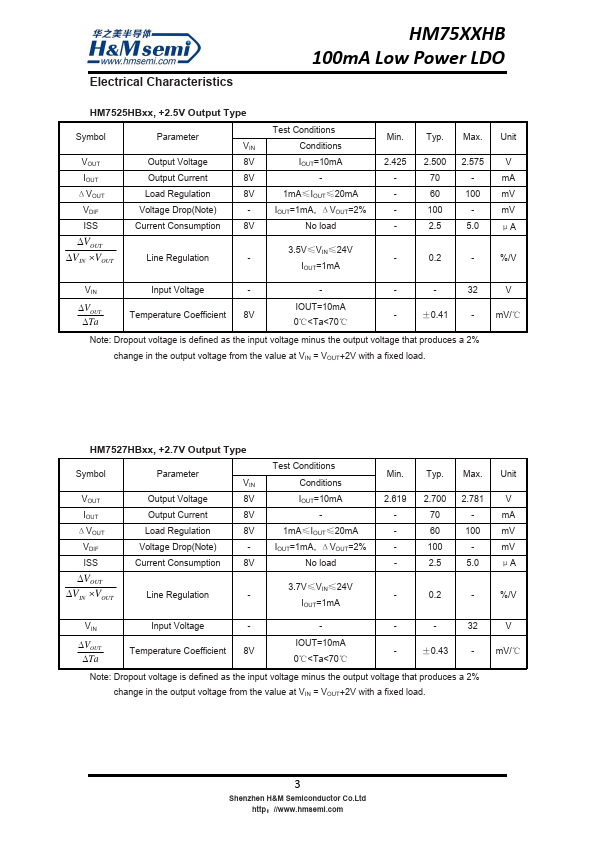

HM7533HB Datasheet Preview — This datasheet PDF includes multiple part numbers: HM7533HB, HM7525HB. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: HM7533HB, HM7525HB
Manufacturer: H&M Semiconductor
File Size: 824.00 KB
Datasheet: HM7525HB-HMSemiconductor.pdf
Description: 100mA Low Power LDO
Note: This datasheet PDF includes multiple part numbers: HM7533HB, HM7525HB.
Please refer to the document for exact specifications by model.

Features

* Low power consumption
* Low voltage drop
* Low temperature coefficient
* High input voltage (up to 32V)
* Output voltage accuracy: tolerance ±3%

Applications

* Battery-powered equipment
* Communication equipment
