HM8102 - 300mA Single Li-ion Battery Charger

HM8102 Description

HM8102 HM8102 300mA, Single Li-ion Battery Charger .
The HM8102 series of devices are highly integrated Li-Ion and Li-Pol linear chargers targeted at small capacity battery for portable applications.

HM8102 Features

* 1% Charge Voltage Accuracy
* 5% Charge Current Accuracy
* Programmable Charge Current 1mA~300mA
* Over-Temperature Protection
* Under Voltage Lockout Protection
* 2.5V Trickle Charge Threshold
* Soft-Start Limits Inrush Current
* Charge Status Output Pin
* Autom

HM8102 Applications

* It is a complete constant-current/constant voltage linear charger. No external sense resistor is needed, and no blocking diode is required due to the internal MOSFET architecture. It can deliver up to 300mA of charge current (using a good thermal PCB layout) with a final float voltage accuracy of ±

📥 Download Datasheet

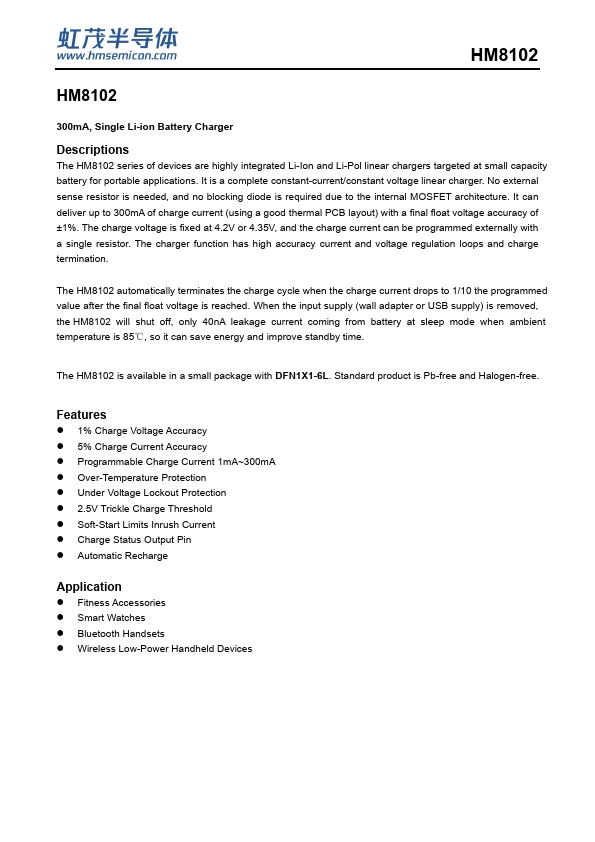

Preview of HM8102 PDF

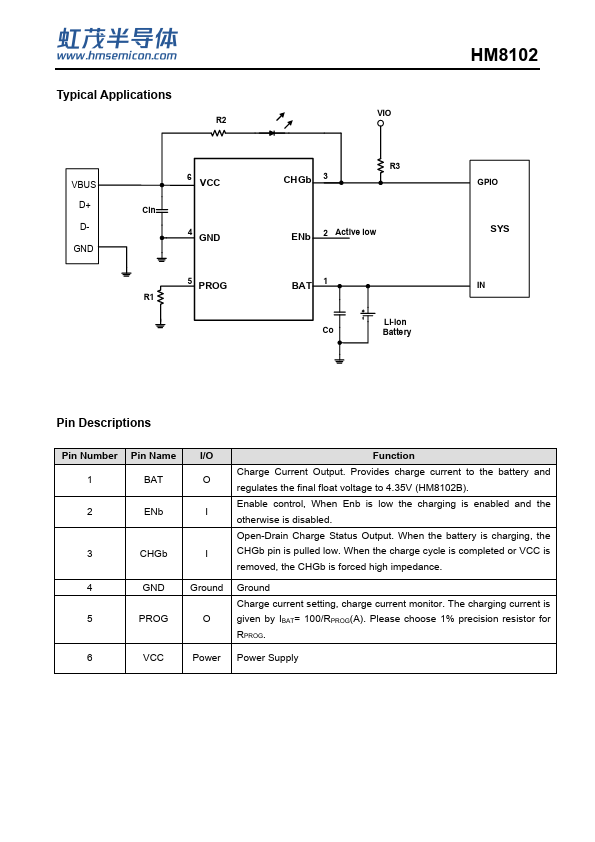

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM8102
Manufacturer
H&M Semiconductor
File Size
295.93 KB
Datasheet
HM8102-HMSemiconductor.pdf
Description
300mA Single Li-ion Battery Charger
