HM8114 30V 2A 500KHz Synchronous Step-Down Regulator

H&M Semiconductor

Description

HM8114 30V 2A 500KHz Synchronous Step-Down Regulator .
The +0 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs.

📥 Download Datasheet

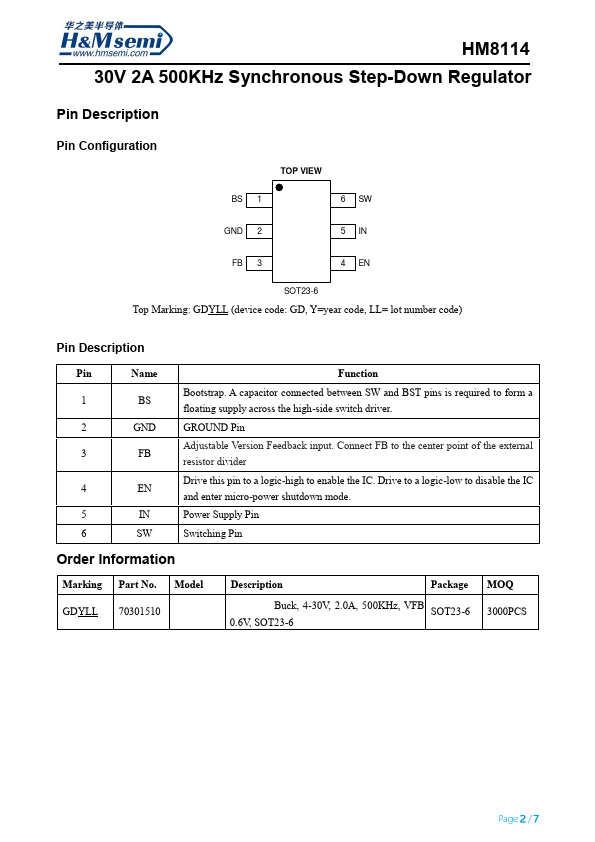

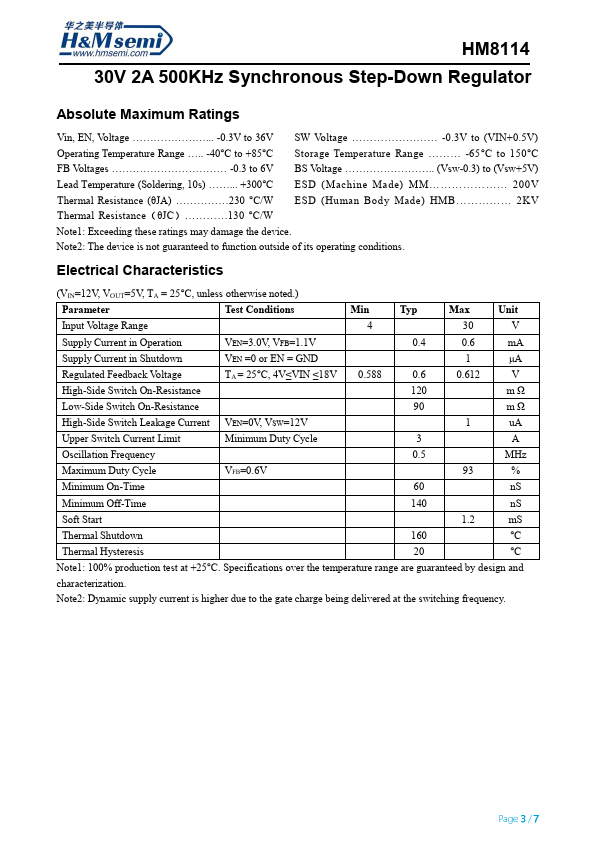

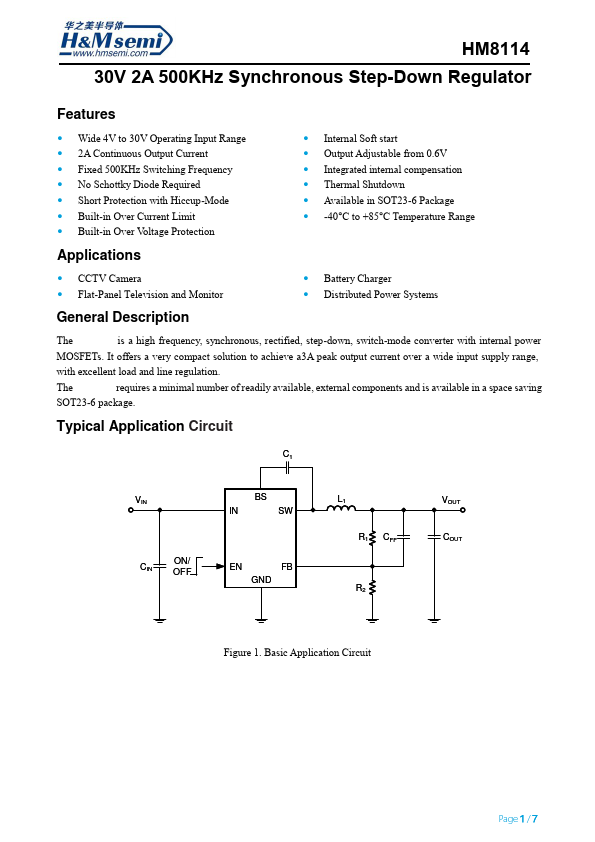

HM8114 Datasheet Preview — Preview of HM8114 PDF

Datasheet Specifications

Part number: HM8114
Manufacturer: H&M Semiconductor
File Size: 825.61 KB
Datasheet: HM8114-HMSemiconductor.pdf
Description: 30V 2A 500KHz Synchronous Step-Down Regulator

Features

* Wide 4V to 30V Operating Input Range
* 2A Continuous Output Current
* Fixed 500KHz Switching Frequency
* No Schottky Diode Required
* Short Protection with Hiccup-Mode
* Built-in Over Current Limit
* Built-in Over Voltage Protection

Applications

* CCTV Camera
* Flat-Panel Television and Monitor
* Battery Charger
