HM9N90 - 900V N-Channel MOSFET

HM9N90 Description

HM9N90 HM9N90 900V N-Channel MOSFET General .
This Power MOSFET is produced using SL semi‘s advanced planar stripe DMOS technology.

HM9N90 Features

* 9.0A, 900V, RDS(on) = 1.40Ω @VGS = 10 V
* Low gate charge ( typical 45nC)
* High ruggedness
* Fast wsitching
* 100% avalanche tested
* Improved dv/dt capability Absolute Maximum Ratings TC = 25°Cunless otherwise noted Symbol Parameter VDSS Drain

📥 Download Datasheet

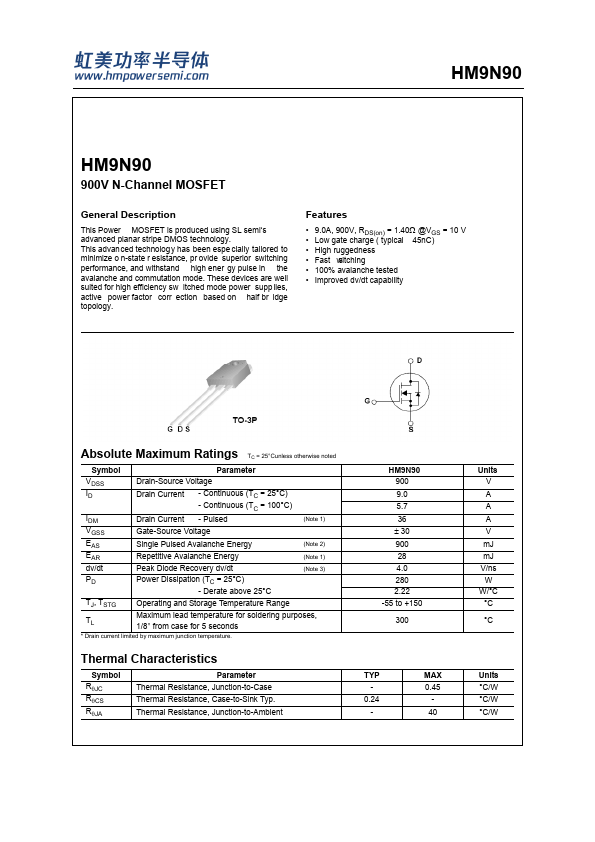

Preview of HM9N90 PDF

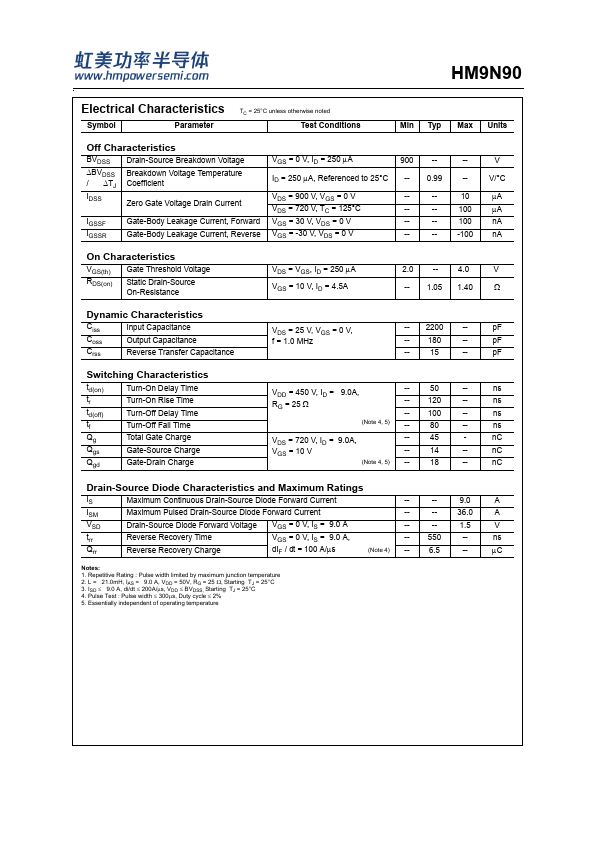

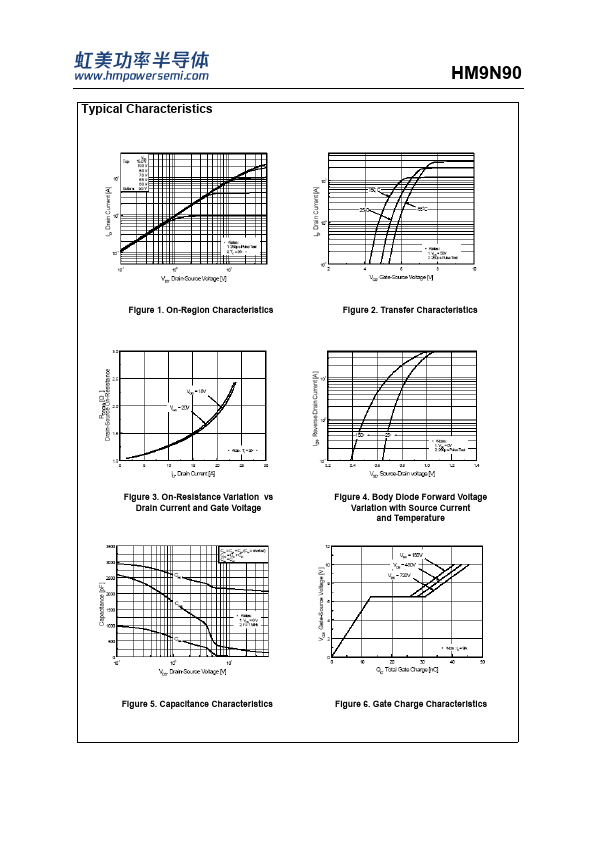

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM9N90
Manufacturer
H&M Semiconductor
File Size
332.28 KB
Datasheet
HM9N90-HMSemiconductor.pdf
Description
900V N-Channel MOSFET
