HMS120N10 Datasheet - H&M Semiconductor

HMS120N10 N-Channel Super Trench II Power MOSFET

The series of devices uses Super Trench II technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg. This device is ideal for high-frequency.

HMS120N10 Features

* VDS =100V,ID =120A RDS(ON)=4.6mΩ , typical (TO-263)@ VGS=10V RDS(ON)=4.7mΩ , typical (TO-220)@ VGS=10V

* Excellent gate charge x RDS(on) product(FOM)

* Very low on-resistance RDS(on)

* 175 °C operating temperature

* Pb-free lead plating 100% UIS TESTED! 100% ∆Vds TESTED! TO-22

HMS120N10-HMSemiconductor.pdf

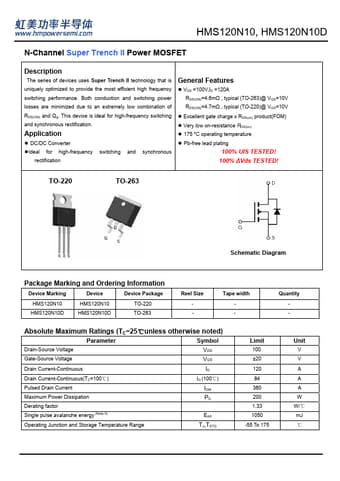

Preview of HMS120N10 PDF
HMS120N10 Datasheet Preview Page 2 HMS120N10 Datasheet Preview Page 3

Datasheet Details

Part number:

HMS120N10

Manufacturer:

H&M Semiconductor

File Size:

740.12 KB

Description:

N-channel super trench ii power mosfet.
