HMS80N10KA - N-Channel Super Trench Power MOSFET

HMS80N10KA Description

HMS80N10KA N-Channel Super Trench Power MOSFET .
The HMS80N10KA uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance.

HMS80N10KA Features

* VDS =100V,ID =80A RDS(ON) ≤8.8mΩ(max @ VGS=10V RDS(ON) ≤12mΩ(max) @ VGS=4.5V
* Excellent gate charge x RDS(on) product(FOM)
* Very low on-resistance RDS(on)
* 175 °C operating temperature
* Pb-free lead plating

📥 Download Datasheet

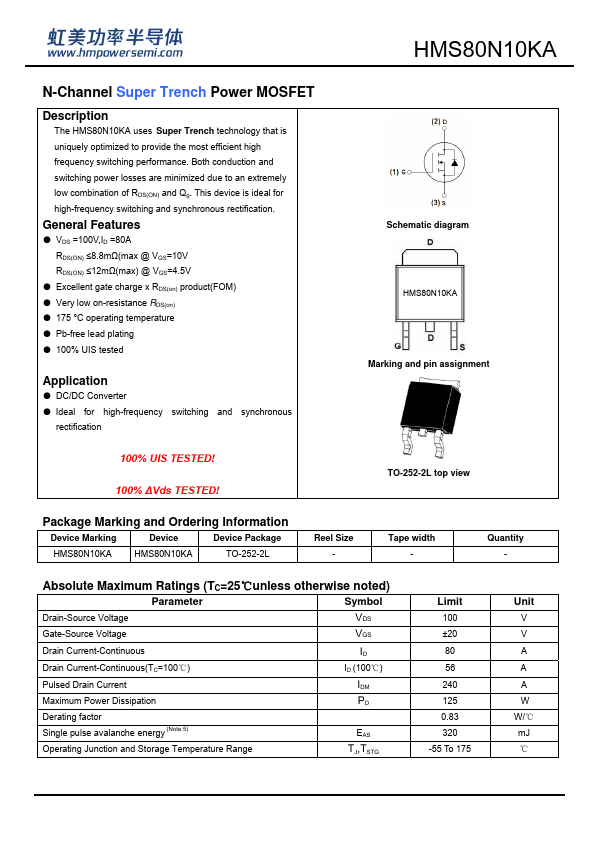

Preview of HMS80N10KA PDF

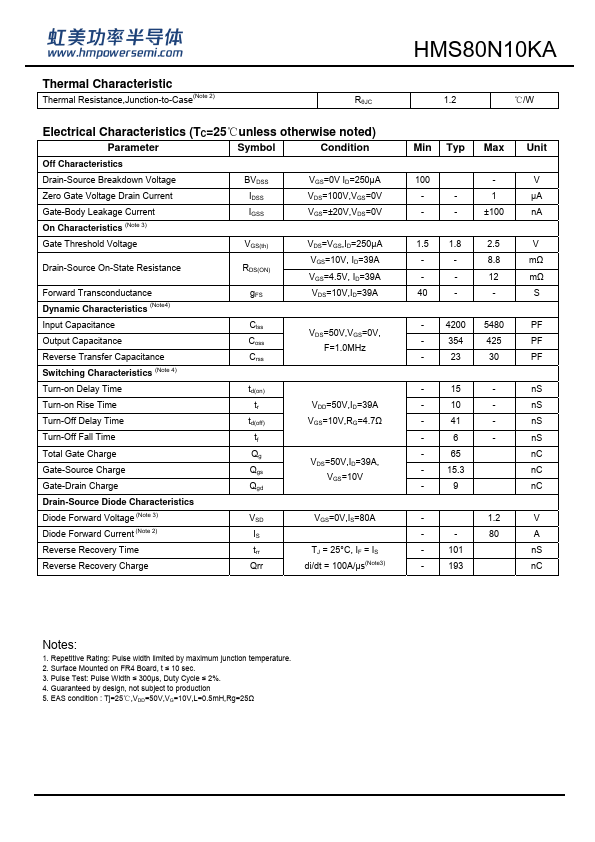

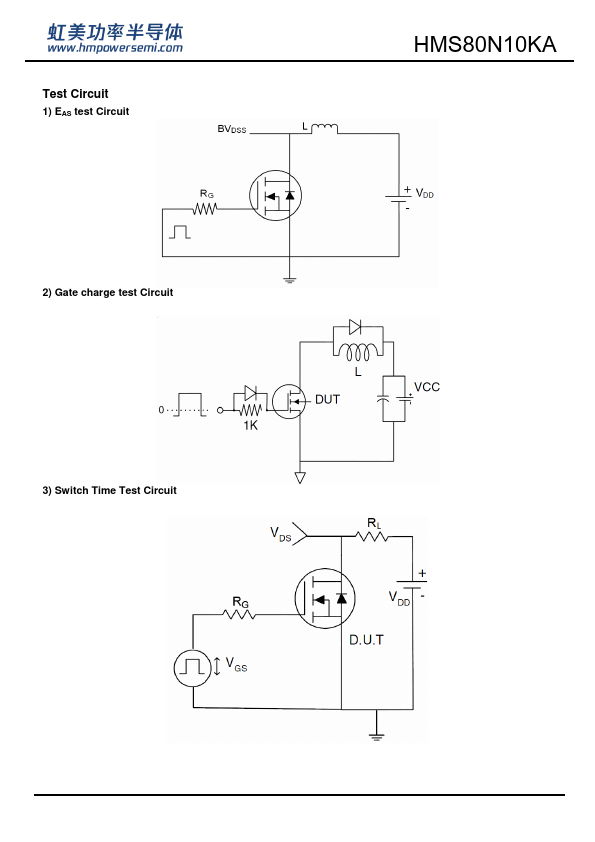

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HMS80N10KA
Manufacturer
H&M Semiconductor
File Size
914.82 KB
Datasheet
HMS80N10KA-HMSemiconductor.pdf
Description
N-Channel Super Trench Power MOSFET
