HMS80N85 Datasheet - H&M Semiconductor

HMS80N85 N-Channel Super Trench II Power MOSFET

The series of devices uses Super Trench II technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg. This device is ideal for high-frequency.

HMS80N85 Features

* VDS =8V,ID =85A RDS(ON)=6.8mΩ , typical (TO-220)@ VGS=10V RDS(ON)=6.8mΩ , typical (TO-263)@ VGS=10V

* Excellent gate charge x RDS(on) product(FOM)

* Very low on-resistance RDS(on)

* 175 °C operating temperature

* Pb-free lead plating 100% UIS TESTED! 100% ∆Vds TESTED! TO-220

HMS80N85-HMSemiconductor.pdf

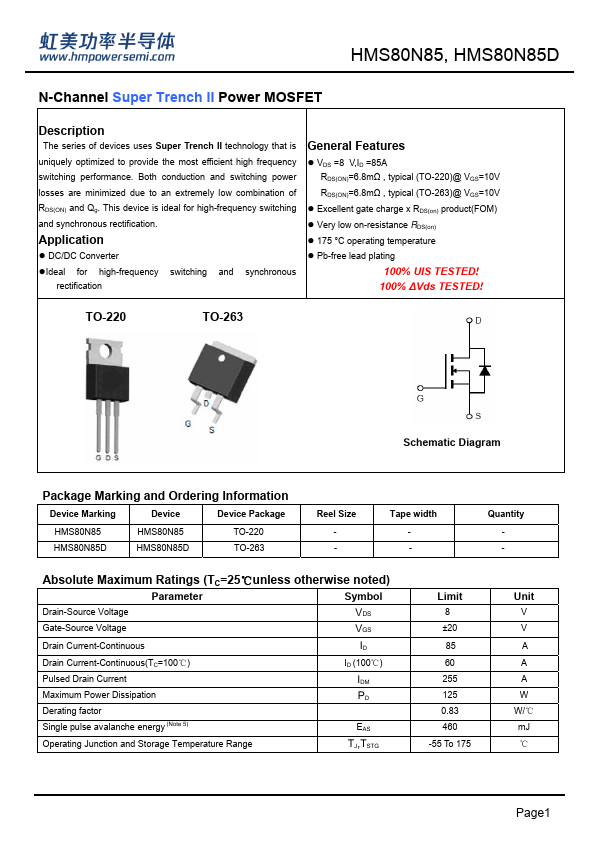

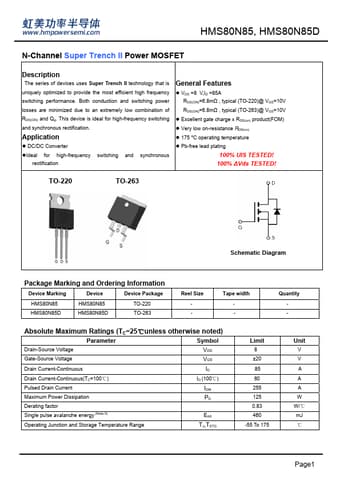

Preview of HMS80N85 PDF

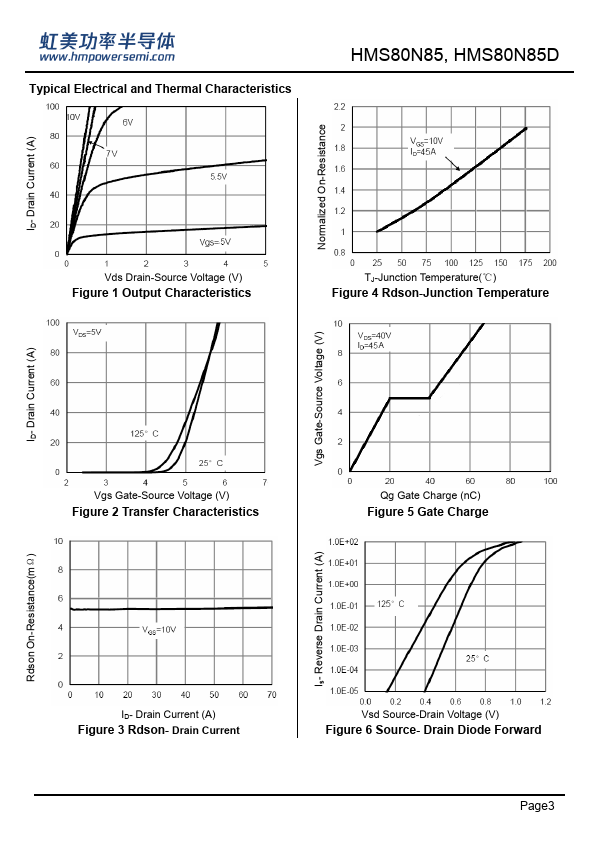

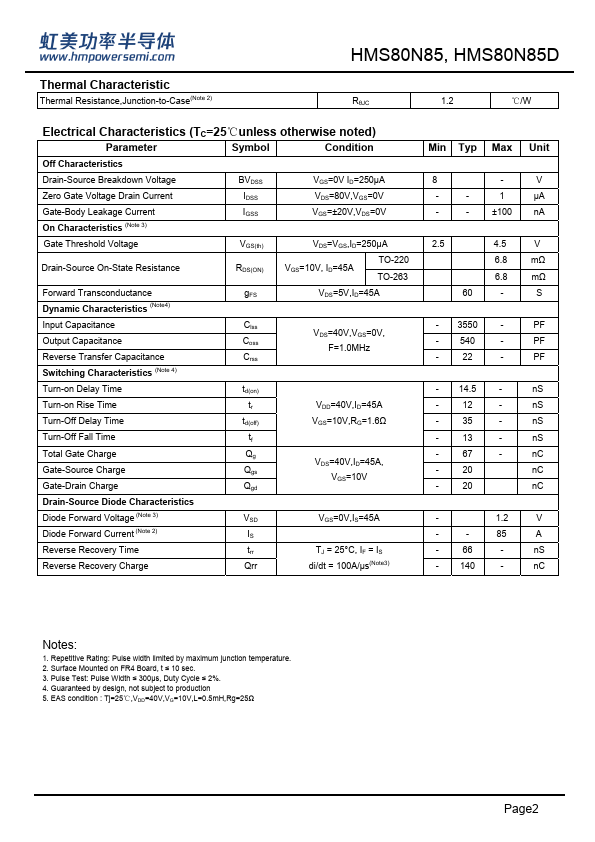

HMS80N85 Datasheet Preview Page 2 HMS80N85 Datasheet Preview Page 3

Datasheet Details

Part number:

HMS80N85

Manufacturer:

H&M Semiconductor

File Size:

577.07 KB

Description:

N-channel super trench ii power mosfet.
