IF389A1D SAW filter

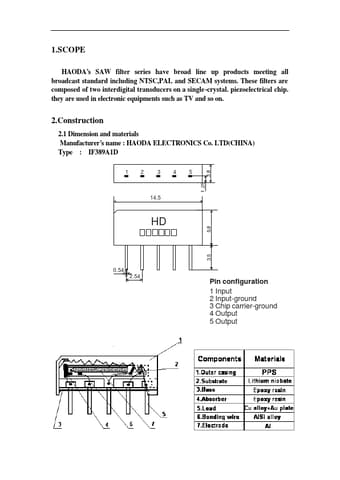

1.SCOPE HAODA’ s SAW filter series have broad line up products meeting all broadcast standard including NTSC,PAL and SECAM systems. These filters are composed of two interdigital transducers on a single-crystal. piezoelectrical chip. they are used in electronic equipments such as TV and so on. 2.Construction 2.1 Dimension and materials Manufacturer’ s name : HAODA ELECTRONICS Co. LTD(CHINA) Type : IF389A1D 1 2 3 4 5 1.25 3.8 3.5 5.8 14.5 HD 0.54 2.54 Pin configuration 1 Input 2 Input-ground.
