IF389A, Dual Matched N-Channel JFET

InterFET Product Folder Technical Support Order Now IF389A-B-C-D IF389A, IF389B, IF389C, IF389D Dual Matched N-Channel JFET .
The -30V InterFET IF389x matched pair JFET is targeted for low noise high gain differential amplifier designs.

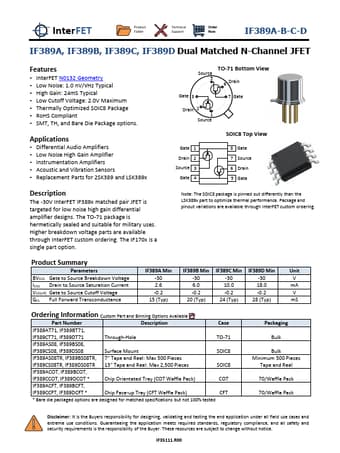

datasheet Preview Page 1 from Datasheet4u.com

IF389A-InterFET.pdf

IF389A Datasheet Preview — Preview of IF389A PDF

Datasheet Details

Part number:

IF389A

Manufacturer:

InterFET

File Size:

428.29 KB

Description:

Dual Matched N-Channel JFET

Features

* InterFET N0132 Geometry
* Low Noise: 1.0 nV/√Hz Typical
* High Gain: 24mS Typical
* Low Cutoff Voltage: 2.0V Maximum
* Thermally Optimized SOIC8 Package
* RoHS Compliant

Applications

* Differential Audio Amplifiers
* Low Noise High Gain Amplifier
* Instrumentation Amplifiers
* Acoustic and Vibration Sensors
* Replacement Parts for 2SK389 and LSK389x TO-71 Bottom View Source 5 6 Drain Gate 3 7 Gate Drain 2 1 Source SOIC8 Top View G
