IF389B, IF389A - Dual Matched N-Channel JFET

InterFET

📥 Download Datasheet

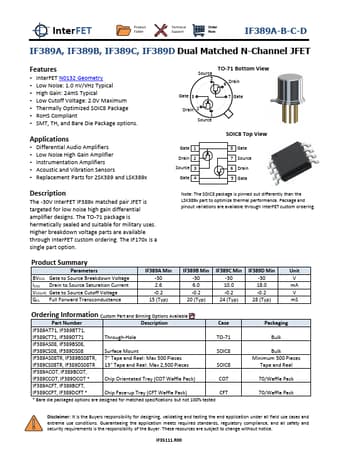

IF389B Datasheet Preview — This datasheet PDF includes multiple part numbers: IF389B, IF389A. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: IF389B, IF389A
Manufacturer: InterFET
File Size: 428.29 KB
Datasheet: IF389A-InterFET.pdf
Description: Dual Matched N-Channel JFET
Note: This datasheet PDF includes multiple part numbers: IF389B, IF389A.
Please refer to the document for exact specifications by model.

IF389B Product details

Description

The -30V InterFET IF389x matched pair JFET is targeted for low noise high gain differential amplifier designs.

Features

InterFET N0132 Geometry.
Low Noise: 1.0 nV/√Hz Typical.
High Gain: 24mS Typical.
Low Cutoff Voltage: 2.0V Maximum.
Thermally Optimized SOIC8 Package.
RoHS Compliant.
SMT, TH, and Bare Die Package options.
