IF389B1D Datasheet - SHOULDER ELECTRONICS

IF389B1D - SAW filter

1.SCOPE SHOULDER’ s SAW filter series have broad line up products meeting all broadcast standard including NTS C,PAL and SECAM systems.

These filters are composed of two interdigital transducers on a single-crystal.

piezoelectrical chip.

they are used in electronic equipments such as TV and so on.

2.Construction 2.1 Dimension and materials Type : IF389B1D 0: year(0,1,2,3,4,5,6,7,8,9) B:product in this quarter(A:1~3,B:4~6,C:7~9,D:10~12) 2.2.

Circuit construction, measurement circuit 3.Charact

IF389B1D-ETC.pdf

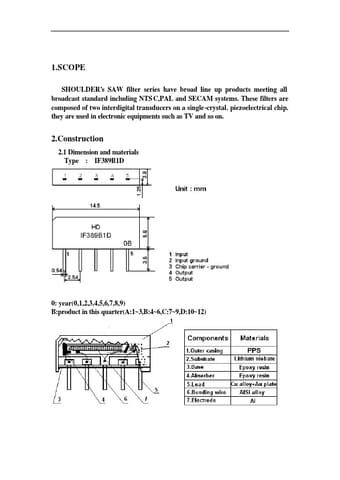

Preview of IF389B1D PDF
IF389B1D Datasheet Preview Page 2 IF389B1D Datasheet Preview Page 3

Datasheet Details

Part number:

IF389B1D

Manufacturer:

SHOULDER ELECTRONICS

File Size:

581.16 KB

Description:

Saw filter.
