IF389B3M Datasheet - ETC

IF389B3M - SAW filter

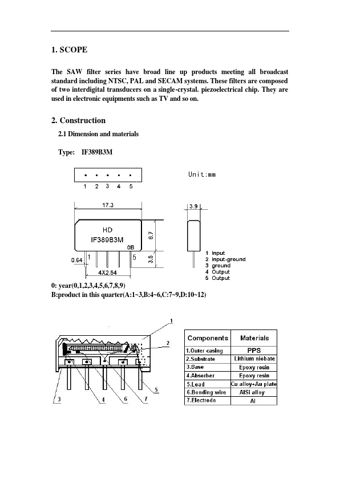

1.

SCOPE The SAW filter series have broad line up products meeting all broadcast standard including NTSC, PAL and SECAM systems.

These filters are composed of two interdigital transducers on a single-crystal.

piezoelectrical chip.

They are used in electronic equipments such as TV and so on.

2.

Construction 2.1 Dimension and materials Type: IF389B3M 0: year(0,1,2,3,4,5,6,7,8,9) B:product in this quarter(A:1~3,B:4~6,C:7~9,D:10~12) 2.2.

Circuit construction, measurement circuit 3.Characteristic

IF389B3M-ETC.pdf

Preview of IF389B3M PDF
IF389B3M Datasheet Preview Page 2 IF389B3M Datasheet Preview Page 3

Datasheet Details

Part number:

IF389B3M

Manufacturer:

ETC

File Size:

166.57 KB

Description:

Saw filter.
