IF389B2M SAW filter

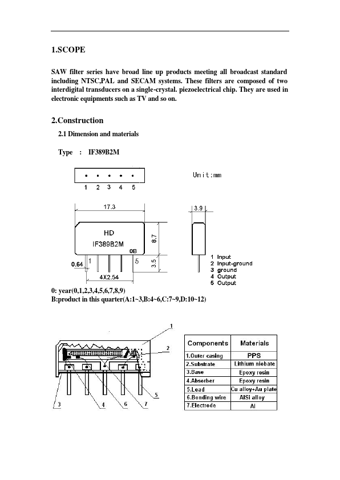

1.SCOPE SAW filter series have broad line up products meeting all broadcast standard including NTSC,PAL and SECAM systems. These filters are composed of two interdigital transducers on a single-crystal. piezoelectrical chip. They are used in electronic equipments such as TV and so on. 2.Construction 2.1 Dimension and materials Type : IF389B2M 0: year(0,1,2,3,4,5,6,7,8,9) B:product in this quarter(A:1~3,B:4~6,C:7~9,D:10~12) 2.2. Circuit construction, measurement circuit 3.Characteristics Stan.

IF389B2M Datasheet (729.34 KB)
