M54123 - CONTROL/DRIVER

Datasheet Summary

Description

　The M54123 is a semiconductor integrated circuit with amplifier 　for a high-speed earth leakage circuit breaker.

Features

rature characteristics of input sensitivity current 　High input sensitivity (VT=6.1mV Typ. ) 　Low external component count 　High noise and surge-proof 　Low power dissipation (Pd=5mW Typ. ) and may be used both　as 100V and 200V. 　High mounting density by SIL package with 8 pins 　Wide temperature range (TA=-20℃~+80℃) 　.

HAOHAI

📥 Download Datasheet

Datasheet Details

Part number	M54123
Manufacturer	HAOHAI
File Size	438.82 KB
Description	CONTROL/DRIVER
Datasheet	M54123 Datasheet
Additional preview pages of the M54123 datasheet.

📁 Similar Datasheet

M54123B - EARTH LEAKAGE CURRENT DETECTOR (UTC)
M54123L - EARTH LEAKAGE CURRENT DETECTOR (Mitsubishi)
M54123L - EARTH LEAKAGE CURRENT DETECTOR (UTC)
M5412222A - MSM5412222A (OKI)
M54122L - EARTH LEAKAGE CURRENT DETECTOR (Mitsubishi)
M54124L - EARTH LEAKAGE CURRENT DETECTOR (Mitsubishi)
M54125L - EARTH LEAKAGE CURRENT DETECTOR (Mitsubishi)
M54125P - EARTH LEAKAGE CURRENT DETECTOR (Mitsubishi)
M54128FP - EARTH LEAKAGE CURRENT DETECTOR (Mitsubishi)
M54128L - EARTH LEAKAGE CURRENT DETECTOR (Mitsubishi)

Other Datasheets by HAOHAI

Full PDF Text Transcription

Click to expand full text

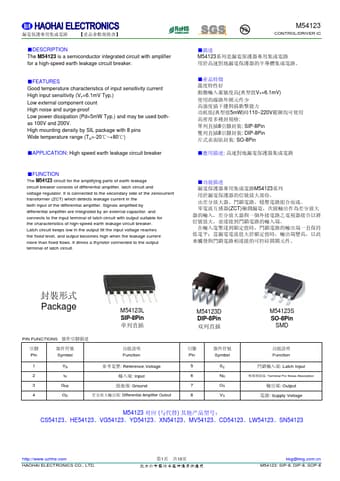

【】　■DESCRIPTION 　The M54123 is a semiconductor integrated circuit with amplifier 　for a high-speed earth leakage circuit breaker. 　■FEATURES 　Good temperature characteristics of input sensitivity current 　High input sensitivity (VT=6.1mV Typ.) 　Low external component count 　High noise and surge-proof 　Low power dissipation (Pd=5mW Typ.) and may be used both　as 100V and 200V. 　High mounting density by SIL package with 8 pins 　Wide temperature range (TA=-20℃~+80℃) 　■APPLICATION: High speed earth leakage circuit breaker 　■FUNCTION 　The M54123 circuit for the amplifying parts of earth leakage 　circuit breaker consists of differential amplifier, latch circuit and 　voltage regulator.

Published: Jan 5, 2017 |
