M54123B

EARTH LEAKAGE CURRENT DETECTOR

UTC

M54123B Features

* With good input sensitivity current temperature characteristics

* High input sensitivity : VT=6.1mV (Typ.)

* Only need low external component count

* High noise and surge-proof

* Low power dissipation : PD=5mW (Typ.)

* May be used both as 100V and 200V.

* Wide temperatu

M54123B General Description

The UTC M54123B is a semiconductor integrated circuit with amplifier for a high-speed earth leakage circuit breaker. For the amplifying parts of earth leakage circuit breaker, the UTC M54123B consists of differential amplifier, latch circuit and voltage regulator. In normal operating, the UTC M54123.

M54123B Datasheet (601.67 KB)

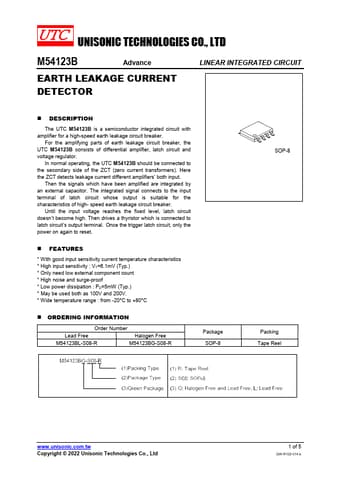

M54123B Datasheet Preview — Preview of M54123B PDF

Datasheet Details

Part number:

M54123B

Manufacturer:

UTC

File Size:

601.67 KB

Description:

Earth leakage current detector.
