M54223

EARTH LEAKAGE CURRENT DETECTOR

M54223 Features

* With good input sensitivity current temperature characteristics

* High input sensitivity :VT=6.1mV (Typ.)

* Only need low external component count

* High noise and surge-proof

* Low power dissipation :PD=5mW (Typ.)

* May be used both as 100V and 200V.

* Wide temperatur

M54223 General Description

The UTC M54223 is a semiconductor integrated circuit with amplifier for a high-speed earth leakage circuit breaker. For the amplifying parts of earth leakage circuit breaker, the UTC M54223 consists of differential amplifier, latch circuit and voltage regulator. In normal operating, the UTC M54223 .

M54223 Datasheet (255.79 KB)

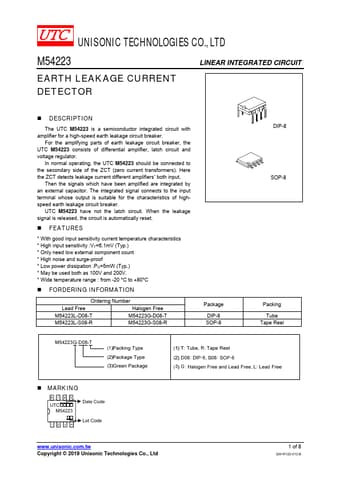

Preview of M54223 PDF

Datasheet Details

Part number:

M54223

Manufacturer:

UTC

File Size:

255.79 KB

Description:

Earth leakage current detector.
