M54124L - EARTH LEAKAGE CURRENT DETECTOR

Product Overview

Mitsubishi

Part number	M54124L
Manufacturer	Mitsubishi
File Size	162.69 KB
Description	EARTH LEAKAGE CURRENT DETECTOR
Datasheet	M54124L Datasheet

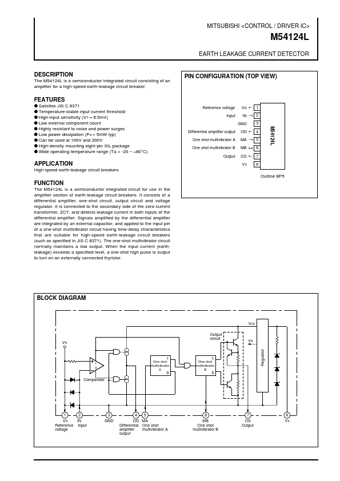

Additional preview pages of the M54124L datasheet.

The M54124L is a semiconductor integrated circuit consisting of an amplifier for a high-speed earth-leakage circuit breaker.

q Satisfies JIS C 8371 q Temperature-stable input current threshold q High-input sensitivity (VT = 6.5mV) q Low external component count q Highly resistant to noise and power surges q Low power dissipation (Pd = 5mW typ) q Can be used at 100V and 200V q High-density mounting eight-pin SIL package q Wide operating temperature range (Ta = -20.
+80°C) Reference voltage Input VR ← 1 IN → 2 GND Differential amplifier output One shot multivibrator A One shot multivibrator B Output 3 M54124L.
