M54133 - EARTH LEAKAGE CURRENT DETECTOR

Product Overview

Unisonic Technologies

Datasheet Details

Part number	M54133
Manufacturer	Unisonic Technologies
File Size	239.86 KB
Description	EARTH LEAKAGE CURRENT DETECTOR
Datasheet	M54133 Datasheet

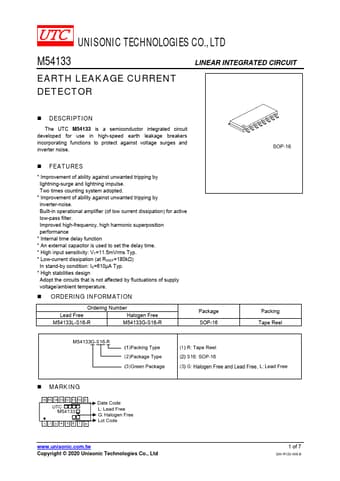

Additional preview pages of the M54133 datasheet.

Product details

Description

The UTC M54133 is a semiconductor integrated circuit developed for use in high-speed earth leakage breakers incorporating functions to protect against voltage surges and inverter noise.

Features

S.
Improvement of ability against unwanted tripping by lightning-surge and lightning impulse. Two times counting system adopted.
Improvement of ability against unwanted tripping by inverter-noise. Built-in operational amplifier (of low current dissipation) for active low-pass filter. Improved high-frequency, high harmonic superposition performance.
Internal time delay function.
An external capacitor is used to set the delay time.
High input sensitivity: VT=11.5mVrms T.
