M54122L - EARTH LEAKAGE CURRENT DETECTOR

Product Overview

Mitsubishi

Part number	M54122L
Manufacturer	Mitsubishi
File Size	196.89 KB
Description	EARTH LEAKAGE CURRENT DETECTOR
Datasheet	M54122L Datasheet

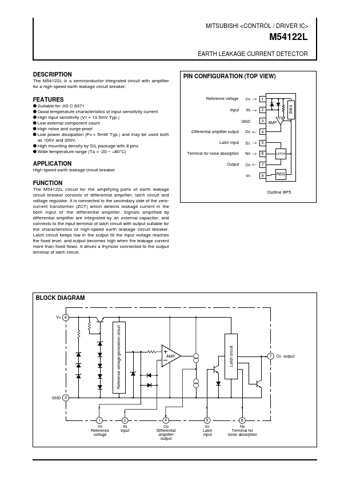

Additional preview pages of the M54122L datasheet.

The M54122L is a semiconductor integrated circuit with amplifier for a high-speed earth leakage circuit breaker.

q Suitable for JIS C 8371 q Good temperature characteristics of input sensitivity current q High input sensitivity (VT = 13.5mV Typ. ) q Low external component count q High noise and surge-proof q Low power dissipation (Pd = 5mW Typ. ) and may be used both as 100V and 200V. q High mounting density by SIL package with 8 pins q Wide temperature range (Ta = -20.
+80°C) Reference voltage Input VR → IN → GND 1 2 3 4 5 6 7 8 REG LATCH AMP Differential amplifier output Latch input Terminal.
