M54147

CMOS LEAKAGE PROTECTION

UTC

M54147 Features

* AC power supply

* Drive SCR, the output pulse width greater than 30ms

* Used to detect the A and AC signal

* Same higher accuracy for different leakage signal

* Excellent immunity to EMC

* 110V~220V(50~60Hz)

* ORDERING INFORMATION Ordering Number Lead Free Halogen F

M54147 General Description

The UTC M54147 is a high performance electric leakage protector special circuit. Including the internal voltage regulator, amplifier, comparator, driver and controller circuit of trip. The peripheral decoupling coil, voltage sensitive resistor, zener diode, diode, resistors, capacitors and other com.

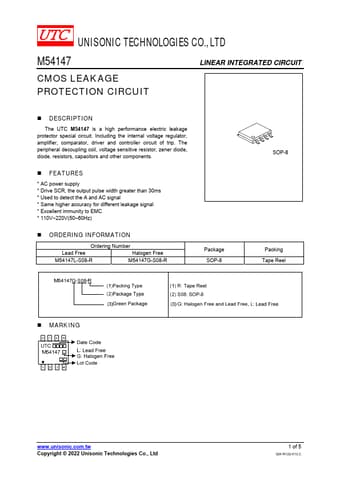

M54147 Datasheet (220.19 KB)

M54147 Datasheet Preview — Preview of M54147 PDF

Datasheet Details

Part number:

M54147

Manufacturer:

UTC

File Size:

220.19 KB

Description:

Cmos leakage protection.
