M54125L - EARTH LEAKAGE CURRENT DETECTOR

Product Overview

Mitsubishi

Part number	M54125L
Manufacturer	Mitsubishi
File Size	146.10 KB
Description	EARTH LEAKAGE CURRENT DETECTOR
Datasheet	M54125L Datasheet

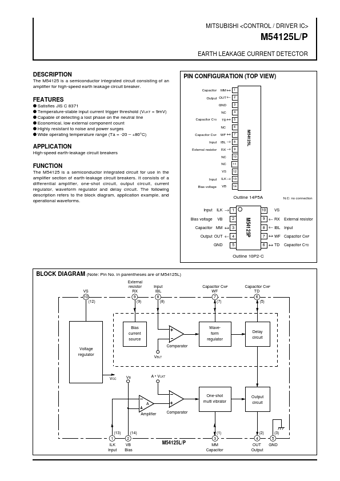

Additional preview pages of the M54125L datasheet.

The M54125 is a semiconductor integrated circuit consisting of an amplifier for high-speed earth leakage circuit breaker.

q Satisfies JIS C 8371 q Temperature-stable input current trigger threshold (VLKT = 9mV) q Capable of detecting a lost phase on the neutral line q Economical, low external component count q Highly resistant to noise and power surges q Wide operating temperature range (Ta = -20.
+80°C) Output OUT ← 2 GND NC Capacitor CTD 3 4 ← 5 TD → NC 6 M54125L Capacitor CWF Input ← 7 WF → IBL → 8 RX → 9 NC 10 11 12.
