M54134 - EARTH LEAKAGE CURRENT DETECTOR

Product Overview

UTC

M54134 EARTH LEAKAGE CURRENT DETECTOR by UTC - Datasheet Preview — Datasheet preview – M54134

Datasheet Details

Part number	M54134
Manufacturer	UTC
File Size	307.60 KB
Description	EARTH LEAKAGE CURRENT DETECTOR
Datasheet	M54134 Datasheet
Additional preview pages of the M54134 datasheet.

Product details

Description

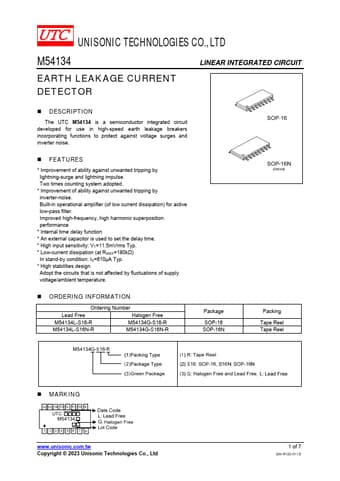

The UTC M54134 is a semiconductor integrated circuit developed for use in high-speed earth leakage breakers incorporating functions to protect against voltage surges and inverter noise.

Features

S.
Improvement of ability against unwanted tripping by lightning-surge and lightning impulse. Two times counting system adopted.
Improvement of ability against unwanted tripping by inverter-noise. Built-in operational amplifier (of low current dissipation) for active low-pass filter. Improved high-frequency, high harmonic superposition performance.
Internal time delay function.
An external capacitor is used to set the delay time.
High input sensitivity: VT=11.5mVrms Ty.
