Datasheet Details
| Part number | HYG200P10LR1P |
|---|---|
| Manufacturer | HOOYI |
| File Size | 1.32 MB |
| Description | P-Channel Enhancement Mode MOSFET |
| Datasheet |
 HYG200P10LR1P-HOOYI.pdf
|
| Part number | HYG200P10LR1P |
|---|---|
| Manufacturer | HOOYI |
| File Size | 1.32 MB |
| Description | P-Channel Enhancement Mode MOSFET |
| Datasheet |
HYG200P10LR1P-HOOYI.pdf
|

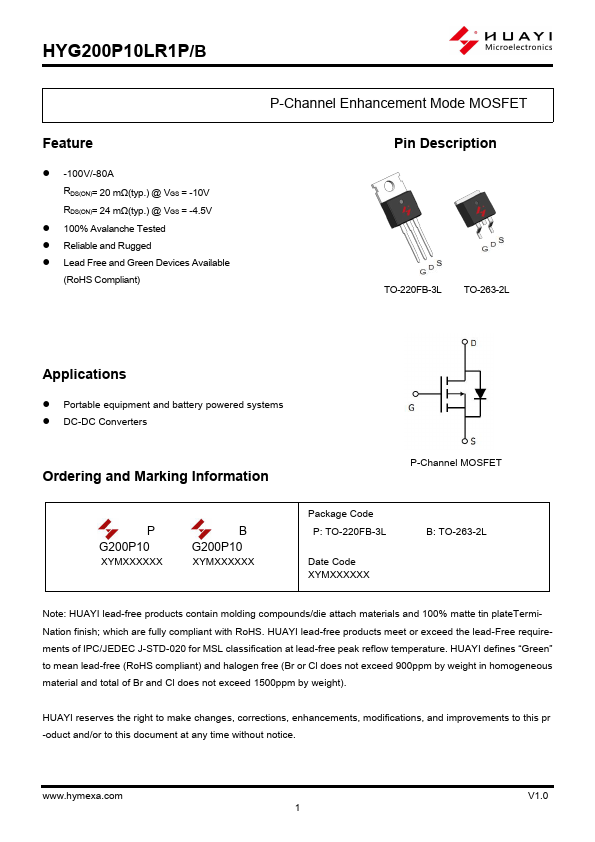

TO-220FB-3L TO-263-2L Applications Portable equipment and battery powered systems DC-DC Converters Ordering and Marking Information P G200P10 XYMXXXXXX B G200P10 XYMXXXXXX P-Channel MOSFET Package Code P: TO-220FB-3L Date Code XYMXXXXXX B: TO-263-2L Note: HUAYI lead-free products contain molding compounds/die attach materials and 100% matte tin plateTermiNation finish; which are fully compliant with RoHS.HUAYI lead-free products meet or exceed the lead-Free requirements of I
