HCPL3100 Datasheet, Optocouplers, HP

HCPL3100 Features

• Optocouplers
• High Output Current IO1 and IO2 (0.4 A Peak, 0.1 A Continuous)
• 1.5 kV/µs Minimum Common Mode Rejection (CMR) at VCM = 600 V
• Wide Operating VCC Range (15 to

PDF File Details

Part number:

HCPL3100

Manufacturer:

HP

File Size:

222.00kb

Download:

📄 Datasheet

Description:

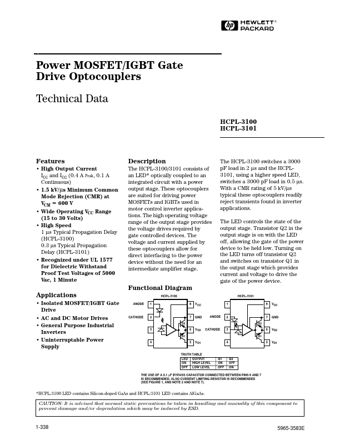

Power mosfet/igbt gate drive optocouplers. The HCPL-3100/3101 consists of an LED

optically coupled to an integrated circuit with a power output stage. These optocouple

HCPL3100 Application

• Applications
• Isolated MOSFET/IGBT Gate Drive
• AC and DC Motor Drives
• General Purpose Industrial Inverters
• Uni
