DF52 Small & Robust Wire to Board Connector

DF52 Description

DF52 Series MKT-E-14019F_1 0.8 mm pitch, Small & Robust Wire to Board Connector * .

DF52 Features

* 1．0.8 mm pitch, 1.75 mm height 4.1 mm depth small connector 2．Rated up to 2.5 Amps MAX with AWG#28, 2 pos. 3．Robust design is tolerant of cable wiring. 4．High contact lance strength 5．Box shape crimp contact prevents deformation 6．Supports cables with jacket O/D 0.5 to 0.6 mm, AWG#32 to 28 7．

📥 Download Datasheet

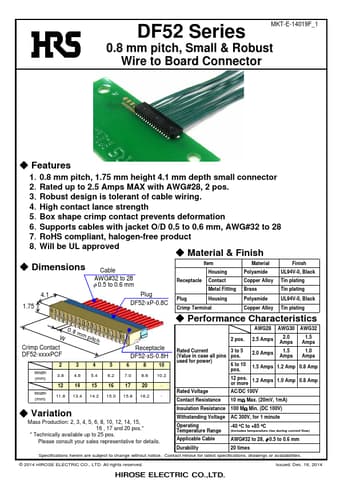

Preview of DF52 PDF

Datasheet Details

Part number
DF52
Manufacturer
HRS
File Size
93.76 KB
Datasheet
DF52-HRS.pdf
Description
Small & Robust Wire to Board Connector
