DF50AA120 Datasheet - SanRex

DF50AA120 - DIODE

DIODE (THREE PHASES BRIDGE TYPE) DF50AA120/160 Power Diode Module DF50AA is designed for three phase full wave rectification, which has six diodes connected in a three phase bridge configuration.

The mounting base of the module is electrically isolated from semiconductor elements for simple heatsink construction Output DC current is 50Amp ʢTcʹ114ˆʣ Repetitive peak reverse voltage is up to 1,600V.

˔ TjMaxʹ150ˆ ˔ Isolated mounting base ˔ High reliability by unique glass passivation ʢApplication

DF50AA120-SanRex.pdf

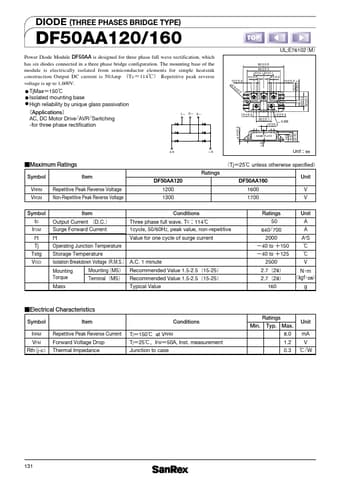

Preview of DF50AA120 PDF
DF50AA120 Datasheet Preview Page 2

Datasheet Details

Part number:

DF50AA120

Manufacturer:

SanRex

File Size:

103.04 KB

Description:

Diode.
